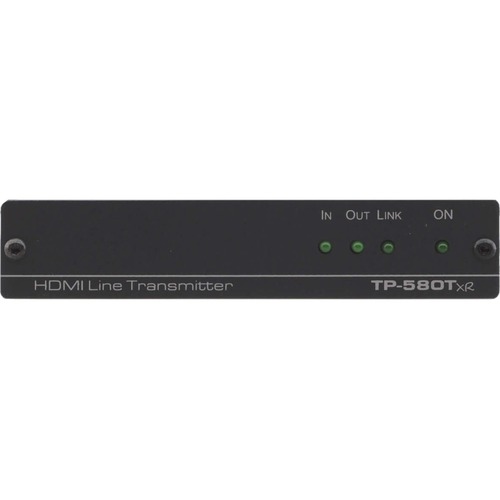

Kramer DigiTOOLS TP-580Txr Video Extender Transmitter - 1 Input Device - 590.55 ft Range - 1 x Network (RJ-45) - 1 x HDMI In - Serial Port - 4K - 4096 x 2160 - Twisted Pair - Rack-mountable 50-80021190

Kramer DigiTOOLS TP-580Txr Video Extender Transmitter - 1 Input Device - 590.55 ft Range - 1 x Network (RJ-45) - 1 x HDMI In - Serial Port - 4K - 4096 x 2160 - Twisted Pair - Rack-mountable 50-80021190
Brand: Kramer Electronics Ltd
Part Number: 50-80021190
MSRP: $384.99
Availability: 10 or more
Condition: New
Price: $320.80
Qty:     - OR -   Add to Wish List
Add to Compare
Kramer DigiTOOLS TP-580Txr Video Extender Transmitter - 1 Input Device - 590.55 ft Range - 1 x Network (RJ-45) - 1 x HDMI In - Serial Port - 4K - 4096 x 2160 - Twisted Pair - Rack-mountable

TP-580Txr is a high-performance, extended-reach HDBaseT transmitter for 4K60Hz (4:2:0) HDMI, RS-232 and IR signals over twisted pair. The TP-580Txr converts all input signals into the transmitted HDBaseT signal. It extends video signals to up to 100m (330ft) over CAT copper cables at up to 4K@60Hz (4:2:0) 24bpp video resolution and provides even further reach for lower HD video resolutions. High Performance Standard Extender - Professional HDBaseT extender for providing extended-reach signals over twisted-pair copper infrastructures. TP-580Txr is a standard extender that can be connected to any market-available HDBaseT-compliant extension product. For optimum extension reach and performance, use recommended Kramer cables. HDMI Signal Extension - HDMI 2.0 and HDCP 2.2 compliant signal. Supports deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D. EDID and CEC signals are passed through from the source to the display. I-EDIDPro™ Kramer Intelligent EDID Processing™ - Intelligent EDID handling, processing and pass-through algorithm that ensures Plug and Play operation for HDMI source and display systems. Multi-channel Audio Extension - Up to 32 channels of digital stereo uncompressed signals for supporting studio-grade surround sound. Bidirectional RS-232 Extension - Serial interface data flows in both directions, allowing data transmission and device control. Bidirectional Infrared Extension - IR interface data flows in both directions, allowing remote control of peripheral devices located at either end of the extended line. Cost-effective Maintenance - Status LED indicators for HDMI and HDBT ports facilitate easy local maintenance and troubleshooting. Local firmware upgrade via RS-232 connection and the K-Upload tool ensures lasting, field-proven deployment. Easy Installation - Compact DigiTOOLS® fan-less enclosure for dropped-ceiling mounting, or side-by-side mounting of 3 units in a 1U rack space with the optional RK-3T rack adapter. Applications Long-distance AV and LAN signal extension for multi-room, large dividable auditoriums and lecture hall connectivity AV extension in conference rooms, boardrooms, control rooms, hotels and large church facilities


Technical Specifications:
Connectivity Technology: Wired
Number of Input Devices Supported: 1
Maximum Operating Distance: 590.55 ft
Graphics Modes: 4K
Maximum Video Resolution: 4096 x 2160
Network (RJ-45): Yes
HDMI In: Yes
Serial Port: Yes
Number of Network (RJ-45) Ports: 1
Number of HDMI Inputs: 1
Media Type Supported: Twisted Pair
Transmitter Height: 0.96"
Transmitter Width: 4.72"
Transmitter Depth: 2.81"
Form Factor: Rack-mountable
Transmitter Weight (Approximate): 7.05 oz
