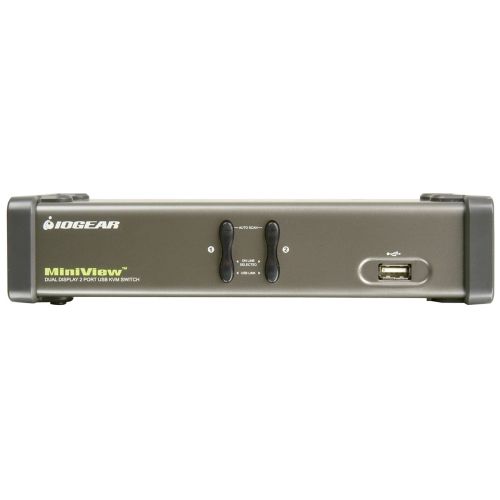

IOGEAR MiniView GCS1742 2-Port Dual View KVM Switch - 2 x 1 - 2 x SPHD-15 Video/USB, 2 x SPHD-15 Audio/Video - TAA Compliance GCS1742

IOGEAR MiniView GCS1742 2-Port Dual View KVM Switch - 2 x 1 - 2 x SPHD-15 Video/USB, 2 x SPHD-15 Audio/Video - TAA Compliance GCS1742
Brand: Iogear, Inc
Part Number: GCS1742
MSRP: $206.99
Availability: 10 or more
Condition: New
Price: $171.78
Qty:     - OR -   Add to Wish List
Add to Compare
IOGEAR MiniView GCS1742 2-Port Dual View KVM Switch - 2 x 1 - 2 x SPHD-15 Video/USB, 2 x SPHD-15 Audio/Video - TAA Compliance

The Dual View GCS1742 USB KVMP Switch brings dual head video functionality to IOGEAR''s USB KVM switch technology. Now two dual-display computers can be accessed and controlled from a single console that consists of a USB keyboard, USB mouse, and two VGA, SVGA, or Multisync monitors. In addition, the GCS1742 allows the computers to share USB peripherals connected to the USB peripheral ports, such as printers, scanners, portable hard drivers, etc.Recognizing the importance of sound, this switch is also audio-enabled. A single microphone can provide audio input to each of the computers, and you can enjoy the audio output of each computer on a single set of speakers.


Warning: This product can expose you to chemicals including Cadmium, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Technical Specifications:
Number of Computers Supported: 2
Number of Local Users Supported: 1
Minimum Scan Interval: 1 Second
Maximum Operating Distance: 72"
Graphic Mode: VGA, SVGA
Maximum Video Resolution: 2048 x 1536
VGA: Yes
Number of VGA Ports: 2
Input Voltage: 5 V DC
Power Consumption: 1.25 W
Height: 1.7"
Width: 7.9"
Depth: 2.9"
Weight (Approximate): 1.81 lb
Package Contents: 1 x MiniView GCS1742 2-Port Dual View KVM Switch, 2 x Custom audio/video cables (6 ft long), 2 x Custom USB/video cables (6 ft long), 1 x Firmware upgrade cable, 1 x User Manual, 1 x Quick Start Guide
Compatibility: Supports multimedia USB keyboards, Supports Mac & Sun keyboards
Additional Information: Independent switching of KVM, USB, and audio, Easy to install - no software required - connecting cables is all it takes, Easy to operate - computer selection via push button switches or hotkeys, Auto Scan function to monitor computer operation, Hotkey selection for OS and keyboard language, LED display for easy status monitoring, Caps Lock, Num Lock, and Scroll Lock, states are saved and restored when switching, Hot pluggable - add or remove computers for easy maintenance, Keyboard and mouse emulation for error free booting, Efficient, ergonomic design - logical connector layout
Platform Supported: PC, Mac, Sun
Country of Origin: Taiwan
