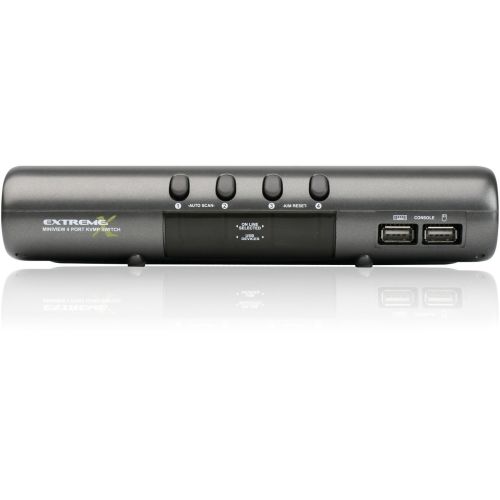

IOGEAR MiniView GCS1734 KVM Switch - 4 x 1 - 4 x SPDB-15 GCS1734

IOGEAR MiniView GCS1734 KVM Switch - 4 x 1 - 4 x SPDB-15 GCS1734
Brand: Iogear, Inc
Part Number: GCS1734
MSRP: $158.99
Availability: 10 or more
Condition: New
Price: $132.34
Qty:     - OR -   Add to Wish List
Add to Compare
IOGEAR MiniView GCS1734 KVM Switch - 4 x 1 - 4 x SPDB-15

IOGEAR new MiniView Extreme Multimedia KVM and Peripheral Sharing Switch brings extra value to conventional KVM switches by offering USB peripheral sharing capabilities, audio and microphone support, and multi-platform support for Windows, Mac, and Sun systems using USB or PS/2(additional cables needed for PS/2, IOGEAR Part No. G2L5302P). You can save money and space by eliminating the need for multiple monitors, keyboards, mice, and peripheral devices such as printers, scanners, zip drives, and more. Up to 127 different USB devices can be daisy chained from this KVMP switch. Sharing speakers and a microphone also offers extra value and convenience for the users.USB and KVM technology together makes cross-platform management easy. A single USB console can control PCs, Macs, or even Sun workstations, and share peripherals and audio devices between the computers. Any USB-enabled computers, using any USB-compatible operating system, can benefit from the efficiency, expense reduction and convenience of IOGEAR Miniview Extreme KVMP switch.


Warning: This product can expose you to chemicals including Cadmium, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Technical Specifications:
Number of Computers Supported: 4
Number of Local Users Supported: 1
Minimum Scan Interval: 5 Second
Graphic Mode: VGA, SVGA
Maximum Video Resolution: 2048 x 1536
USB: Yes
VGA: Yes
Number of USB Ports: 2
Number of VGA Ports: 1
Input Voltage: 5 V DC
Height: 1.7"
Width: 8"
Depth: 3.5"
Weight (Approximate): 1.10 lb
Compatibility: Windows 98, 98SE, ME, 2000, XP, Mac OS 8.6 or greater, Sun Solaris work station, Audio: Only support 2-piece, powered speakers systems
Additional Information: User can conveniently switch USB peripheral devices from one computer to another using Hot Keys, USB peripheral devices and USB consoles can be switched asynchronously from one computer to another using Hot Keys, Fully compliant with USB 1.1 specifications and delivers a 12 Mbps data transmission rate, Complete keyboard and mouse emulation for error free booting, Support special keys on Mac and Sun keyboard, Allows PC keyboards to simulate Mac and Sun special keys through Hotkeys, Features AutoScan mode to monitor all computers, LED display for easy status monitoring, Extra convenience offered through sharing of speakers and microphone, Easy installation: no software required, hot swappable, Compact design for easy placement
Platform Supported: PC, Mac, Sun
Certifications & Standards: FCC Part 15 Class B
Country of Origin: China
