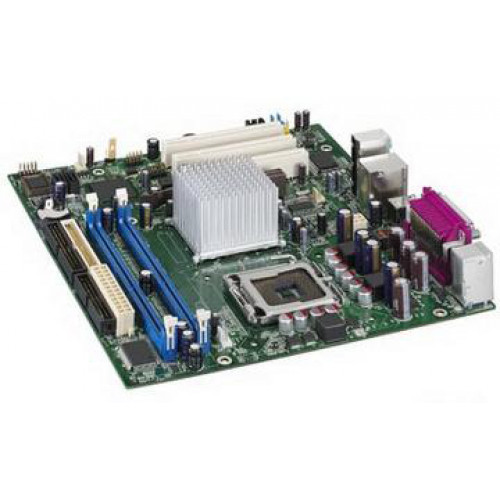

INTEL Motherboard Lga775 800fsb Prescott 2ddr Aud Vdo Sata Uatx BLKD865GSAL

Detail overview

Product Details:

Product Type : Desktop Board

Mfg Number : Blkd865gsal


Description:
Intel - D865gsal Matx Motherboard, Lga775 Socket, 800/533mhz Fsb, 2gb (max) Ddr Sdram Support.

Key Features:

form Factor : Microatx, 9.6 X 8.8 Inches

processor Class:
- Intel Pentium D Processor In An Lga775 Socket With An 800mhz System Bus
- Intel Pentium 4 Processor In An Lga775 Socket With An 800 Or 533mhz System Bus
- Intel Celeron D Processor In An Lga775 Socket With A 533mhz System Bus

Number Of Processors Supported : 1

Chipset Used : Intel 865g

Front Side Bus Supported : 800/533 Mhz

Memory Types Supported : 2 Gb (max) Ddr 400 Mhz, Ddr 333 Mhz And Ddr 266 Mhz Dimms

Number Of Memory Slots : 2 (184-pin)

video Integrated : Intel Extreme Graphics 2 Controller

audio Integrated : Audio Subsystem For Ac 97 Processing Using The Realtek Alc655 Codec

Network Controller On-board : 10/100 Mbits/sec Lan Subsystem Using The Realtek Rtl8100c Ethernet Lan Controller

Onboard Device : 1 Serial And 1 Parallel Port

Ide Mode Supported:
- 2 Serial Ata Interfaces
- 2 Parallel Ata Ide Interface With Udma 33, Ata-66/100 Support

Scsi Controller On-board : None

Agp Slot : Universal 0.8v/1.5v Agp 3.0 Connector Supporting 1x, 4x, And 8x Agp Cards

slots Available : 3 Pci Conventional

number Of Usb Ports : 4 Back, 4 Front Usb 2.0
