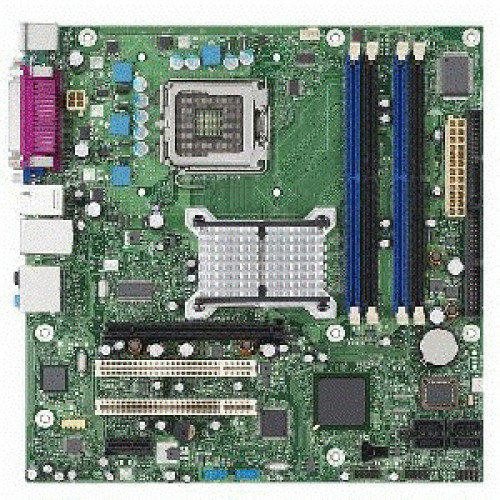

INTEL Lga775 1066mhz Fsb Ddr2 Sata Pcie Tpm Desktop Board BLKD945GTPLR

Detail overview

product Details:

mfg Number : Blkd945gtplr


description:
intel - D945gtplr Micro Atx Motherboard, Socket 775, 1066/800 Mhz Fsb, Up To 4gb Ddr2 Memory Support.

key Features:

form Factor : Micro Atx, 9.6 X 9.6 Inches.

processor Support:
- Intel Pentium 4 Processors
- Intel Pentium D Processors
- Intel Celeron D Processors

socket: Lga775

number Of Processors Supported: 1

front Side Bus Supported: 1066/800mhz

chipset Used: Intel 945g Chipset With Intel I/o Controller Hub (ich7r) And 4 Mbit Firmware Hub (fwh)

memory Types Supported:
- Ddr2 - 667, 533, Or 400 Mhz
- Dual Channel Support
- Up To 4 Gb
- Four Ddr2 Slots

integrated Graphics:
- Intel Graphics Media Accelerator 950
- Add2+ Card Support

audio Integrated:
- Intel High Definition Audio
- Sigmatel Stac9220
- 5 Back Panel Audio Ports
- 1 Spdif (toslink Out) Port
- Dolby Digital Live Certification

network Controller On-board: Intel Pro/100

hard Drives:
- Four Serial Ata (supports Raid)
- One Ide Interface (ata 100/66/33)

expansion Slots:
- One Pci Express X16
- One Pci Express X1
- Two Pci

ieee 1394a:
- One On Back Panel
- Two To Front Panel Via Onboard Headers.

number Of Usb Ports:
- 4 Ports On Back Panel
- Two To Front Panel Via Headers

peripheral Interfaces:
- One Diskette Drive Interface
- One Parallel Port
- One Serial Port
- Ps/2 Keyboard And Mouse Ports
