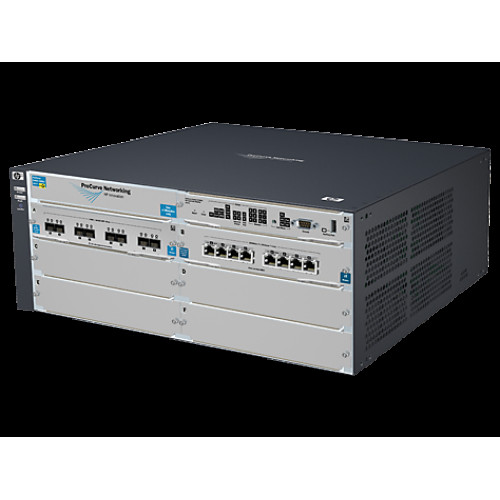

HPE 5406 Switch Switch 8 Ports Managed Rack-mountable J9866A

HPE 5406 Switch Switch 8 Ports Managed Rack-mountable J9866A
Brand: HPE
Part Number: J9866A
MSRP: $7,774.99
Availability: 10 or more
Condition: Refurbished
Price: $6,478.92
Qty:     - OR -   Add to Wish List
Add to Compare

Detail overview

Hpe J9866a 5406 Switch - Switch - 8 Ports - Managed - Rack-mountable :

Key Features :

  • Device Type : Switch - 8 Ports - L4 - Managed
  • Enclosure Type : Rack-mountable - 4u
  • Subtype : 10 Gigabit Ethernet
  • Ports : 8 X 10gbase-t + 8 X 10 Gigabit Sfp+
  • Performance : Routing/switching Capacity : 379.2 Gbps ¦ Throughput : Up To 282.1 Mpps
  • Capacity : Routing Table Entries : 10000
  • Mac Address Table Size : 64k Entries
  • Jumbo Frame Support : Yes
  • Routing Protocol : Rip-1, Rip-2, Ospfv2, Static Ip Routing, Igmpv3, Ospfv3, Static Ipv6 Routing
  • Remote Management Protocol : Snmp 1, Rmon 1, Rmon 2, Rmon 3, Rmon 9, Telnet, Snmp 3, Snmp 2c, Http
  • Encryption Algorithm : Ssl
  • Authentication Method : secure Shell (ssh), Radius, Tacacs+, Secure Shell V.2 (ssh2)
  • Features : Flow Control, Routing, Power Over Ethernet (poe), Bootp Support, Arp Support, Vlan Support, Auto-uplink (auto Mdi/mdi-x), Diffserv Support, Manageable, Spanning Tree Protocol (stp) Support, Rapid Spanning Tree Protocol (rstp) Support, Multiple Spanning Tree Protocol (mstp) Support, Access Control List (acl) Support, Quality Of Service (qos), Jumbo Frames Support, Mld Snooping, Uni-directional Link Detection (udld)
  • Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.3af, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.1s, Ieee 801.1p, Ieee 802.1v, Ieee 802.3an
  • Processor : 1 X Freescale Powerpc 8540 : 666 Mhz
  • Ram : 256 Mb - Ddr Sdram
  • Flash Memory : 4 Mb

    Expansion / Connectivity :
    interfaces :
  • 8 X 10gbase-t - Rj-45
  • 8 X - Sfp+
  • 1 X Serial (rs-232) - Management

    expansion Slots
  • 6 (total) / 4 (free) X Expansion Slot
  • 1 (total) / 1 (free) X Compactflash Card

    installed Modules Qty (max)
  • 2 (installed) / 6 (max)

    Power :
  • Power Device : Internal Power Supply - Hot-plug
  • Installed Qty : 1 (installed) / 2 (max)
  • Power Redundancy : Optional
  • Power Provided : 1500 Watt
  • Voltage Required : Ac 120/230 V ( 50/60 Hz )
