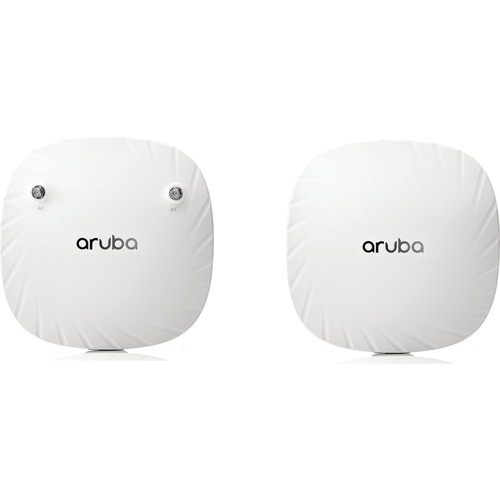

HPE Aruba AP-505 802.11ax 1.46 Gbit/s Wireless Access Point - 2.40 GHz, 5 GHz - MIMO Technology - 1 x Network (RJ-45) - Gigabit Ethernet - Bluetooth 5 - Ceiling Mountable R2H27A

Aruba AP-505 802.11ax 1.46 Gbit/s Wireless Access Point - 2.40 GHz, 5 GHz - MIMO Technology - 1 x Network (RJ-45) - Gigabit Ethernet - Bluetooth 5 - Ceiling Mountable

These affordable Wi-Fi 6 access points provide high-performance connectivity for any organization experiencing growing numbers of mobile, IoT and mobility requirements. With a maximum real-world aggregate data rate of 1.49 Gbps (HE80/HE20), they deliver the speed and reliability needed for venues and workplaces such as schools, midsize offices and retailers.INCREDIBLE EFFICIENCYThe 500 Series APs are also designed to optimize user experience by maximizing Wi-Fi efficiency and dramatically reducing airtime contention between clients.Features include Orthogonal frequency-division multiple access (OFDMA), bi-directional multi-user MIMO and cellular optimization. With up to 2 spatial streams (2SS) and 80MHz channel bandwidth (HE80), the 500 Series provides groundbreaking wireless capabilities for budget-conscious deployments.Read the Multi-User 802.11ax white paper for further informationAdvantages of OFDMAThis capability allows Aruba''s APs to handle multiple Wi-Fi 6 capable clients on each channel simultaneously, regardless of device or traffic type. Channel utilization is optimized by handling each transaction via smaller sub-carriers or resource units (RUs), which means that clients are sharing a channel and not competing for airtime and bandwidth.Aruba Air Slice™ for Extended Application AssuranceInitially, APs in controller-less mode (Instant) can provide SLA-grade performance by allocating radio resources, such as time, frequency, and spatial streams, to specific traffic types. By combining Aruba''s Policy Enforcement Firewall (PEF) and Layer 7 deep packet inspection (DPI) to identify user roles and applications, the APs will dynamically allocate the bandwidth needed. Non-Wi-Fi 6 clients can also benefit.Air Slice™ for APs uses Aruba Central for management. Controller-based APs will be supported in a future software release.Multi-user MIMO (MU-MIMO)The 500 Series AP supports downlink MU-MIMO just like WiFi 5 (802.11ac Wave 2) APs. The added benefit is the ability to multiply the number of clients that can now send traffic, thus optimizing client-to-AP spatial stream diversity.Wi-Fi 6 and MU-MIMO aware client optimizationAruba''s patented AI-powered ClientMatch technology eliminates sticky client issues by placing Wi-Fi 6 capable devices on the best available AP. Session metrics are used to steer mobile devices to the best AP based on available bandwidth, types of applications being used and traffic type - even as users roam.Aruba Advanced Cellular Coexistence (ACC)This feature uses built-in filtering to automatically minimize the impact of interference from cellular networks, distributed antenna systems (DAS), and commercial small cell or femtocell equipment.Intelligent Power Monitoring (IPM)Aruba APs continuously monitor and report hardware energy consumption. They can also be configured to enable or disable capabilities based on available PoE power - ideal when wired switches have exhausted their power budget.Green AP energy efficiencyAruba Wi-Fi 6 APs utilize analytics from NetInsight to automatically transition in and out of a sleep mode based on client density. Learn more in the Green AP At-A-Glance.

Technical Specifications:
Wireless LAN Standard: 802.11ax
Bluetooth Standard: Bluetooth 5
Frequency Band: 2.40 GHz, 5 GHz
Total Number of Antennas: 2
Number of Internal Antennas: 2
Wireless Transmission Speed: 1.46 Gbit/s
MIMO Technology: Yes
Beamforming Technology: Yes
Data Encryption: Yes
Encryption Standard: WPA3, WPA2-MPSK
Ethernet Technology: Gigabit Ethernet
Number of Network (RJ-45) Ports: 1
PoE PD Port: Yes
USB: Yes
Form Factor: Ceiling Mountable
Height: 1.5"
Width: 6.3"
Depth: 6.3"
Weight (Approximate): 1.10 lb
Environmentally Friendly: Yes
Environmental Certification: RoHS
