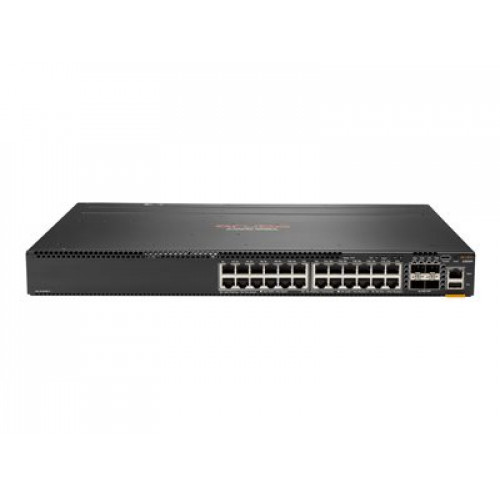

HPE Aruba 6300m Switch 24 Ports Managed Rack-mountable JL664-61001

HPE Aruba 6300m Switch 24 Ports Managed Rack-mountable JL664-61001
Brand: HP
Part Number: JL664-61001
MSRP: $6,454.99
Availability: 10 or more
Condition: New
Price: $5,378.40
Qty:     - OR -   Add to Wish List
Add to Compare

Detail overview

Hpe Jl664-61001 Aruba 6300m - Switch - 24 Ports - Managed - Rack-mountable.

Key Features :

  • Product Description: Hpe Aruba 6300m - Switch - 24 Ports - Managed - Rack-mountable.
  • Device Type: Switch - 24 Ports - L3 - Managed - Stackable
  • Enclosure Type: Rack-mountable 1u
  • Subtype: Gigabit Ethernet
  • Ports: 24 X 10/100/1000 + 4 X 1 Gigabit / 10 Gigabit / 25 Gigabit / 50 Gigabit Sfp56 (uplink / Stacking)

  • Performance: Switching Capacity: 448 Gbps ¦ Throughput: 334 Mpps ¦ Latency (1 Gbps): 2.28 Μs ¦ Latency (10 Gbps): 1.46 Μs ¦ Latency (25 Gbps): 1.9 Μs ¦ Latency (50 Gbps): 3.49 Μs ¦ Stacking Bandwidth: 200 Gbps
    capacity: Switched Virtual Interfaces (svis): 1000 ¦ Ipv4 Host Table Capacity: 32000 ¦ Ipv6 Host Table Capacity: 32000 ¦ Ipv4 Routes (unicast): 64000 ¦ Ipv6 Routes (unicast): 32000 ¦ Ipv4 Routes (multicast): 8000 ¦ Ipv6 Routes (multicast): 8000 ¦ Igmp Groups: 8000 ¦ Mld Groups: 4000 ¦ Ipv4 Acl Entries (ingress): 5000 ¦ Ipv6 Acl Entries (ingress): 1250 ¦ Mac Acl Entries (ingress): 5000 ¦ Ipv4 Acl Entries (egress): 2000 ¦ Ipv6 Acl Entries (egress): 500 ¦ Mac Acl Entries (egress): 2000

  • Mac Address Table Size: 32000 Entries
  • Jumbo Frame Support: 9198 Bytes

  • Routing Protocol: Egp, Bgp-4, Igmpv2, Igmp, Vrrp, Ospfv2, Igmpv3, Ospfv3, Msdp, Static Ipv6 Routing, Ecmp, Mld, Bidirectional Forwarding Detection (bfd)
    remote Management Protocol: Rmon, Telnet, Snmp 3, Snmp 2c, Https, Tftp, Ssh, Cli, Xrmon, Sftp

    compliant Standards: Ieee 802.1d, Ieee 802.1q, Ieee 802.1p, Ieee 802.3ad (lacp), Ieee 802.1w,
    Ieee 802.1x, Ieee 802.3ae, Ieee 802.1s, Ieee 802.1t, Ieee 802.1v, Ieee 802.1ab (lldp),
    ieee 802.1ak, Ieee 802.1ax

  • Processor: 1 X Arm Cortex-a72: 1.78 Ghz
  • Ram: 8 Gb Ddr4 Sdram
  • Flash Memory: 32 Gb

    Expansion / Connectivity:

    Interfaces:

  • 24 X 10/100/1000 Base-t Rj-45 Poe+
  • 4 X 1gbit/10gbit/25gbit/50gbit Sfp56
  • 1 X Usb-c Console
  • 1 X Management
  • 1 X Usb Type A
