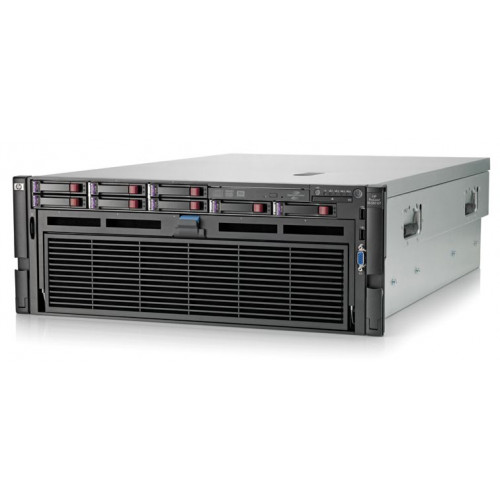

HP Proliant Dl580 G7 High Performance Model- 4x Intel Xeon 10-core E7-4850/2.0ghz, 128gb Ddr3 Sdram, Dvd Rom, Hp Smart Array P410i/1g Fbwc Controller, Hp Nc375i Integrated Quad Port Gigabit Server Adapter, Ilo-3, 4x 1200w Ps, 4u Rack Server 696730-001

HP Proliant Dl580 G7 High Performance Model- 4x Intel Xeon 10-core E7-4850/2.0ghz, 128gb Ddr3 Sdram, Dvd Rom, Hp Smart Array P410i/1g Fbwc Controller, Hp Nc375i Integrated Quad Port Gigabit Server Adapter, Ilo-3, 4x 1200w Ps, 4u Rack Server 696730-001
Brand: HPE
Part Number: 696730-001
MSRP: $2,589.99
Availability: 10 or more
Condition: Refurbished
Price: $2,157.84
Qty:     - OR -   Add to Wish List
Add to Compare

Detail overview

General Information :
product Name: Proliant Dl580 G7 4u-rack Server High Performance Model

Processor & Chipset :
processor Type: Intel Xeon E7-4850 / 2.0ghz
multi-core Technology: 10-core
64-bit Computing: Yes
installed Qty: 4
max Supported Qty: 4
chipset Type: Intel 7500

Cache Memory :
cache Memory Type: L3 Cache
installed Size: 120 Mb
cache Per Processor: 30 Mb

Memory :
installed Ram Size: 128 Gb
maximum Ram Size : 2 Tb
technology: Ddr3 Sdram - Advanced Ecc
memory Speed: 1333 Mhz
memory Specification Compliance: Pc3-10600
form Factor: Dimm 240-pin
features: Registered, Memory Mirroring, Online Spare Memory
configuration Features: 16 X 8 Gb

Storage :
hard Drives : None Ship Standard
internal Storage : Up To 8.0tb Of Internal Storage (sff Sas)
optical Drive : Hp Slim Sata Dvd Rom Optical Drive

Storage Controllers :
storage Controller Type: 1 X Raid - Integrated - Pci Express 2.0 X4
controller Interface Type: Serial Ata-300 / Sas 2.0
storage Controller Name: Embedded Hp Smart Array P410i/1g Fbwc Controller
raid Level: Raid 0, Raid 1, Raid 5, Raid 6, Raid 10, Raid 50, Raid 60
buffer Size: 1 Gb

Display & Graphics :
graphics Controller Type: Integrated
graphics Processor: Ati Es1000
video Memory: 64 Mb

Network & Communication :
networking: Network Adapter - Pci Express 2.0 X8 - Integrated
ethernet Ports: 4 X Gigabit Ethernet
ethernet Controller(s): Hp Nc375i Integrated Quad Port Gigabit Server Adapter
data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
remote Management Controller: Integrated Lights-out 3
features: Wake On Lan (wol), Acpi Support, Pxe Support
compliant Standards: Ieee 802.3, Ieee 802.3u, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3ad (lacp)

Expansion & Connectivity :
expansion Bays Total (free):

  • 1 (total) / 0 (free) X Front Accessible - 5.25in Slim Line
  • 8 (total) / 8 (free) X Hot-swap - 2.5in Sff

    expansion Slots Total (free) :
  • 64 (total) / 48 (free) X Memory - Dimm 240-pin
  • 4 (total) / 0 (free) X Processor
  • 2 (total) / 2 (free) X Pci Express 2.0 X16 ( X8 Mode )
  • 3 (total) / 3 (free) X Pci Express 2.0 X8 ( X4 Mode )

    interfaces & Ports :
  • 1 X Serial - Rs-232 - 9 Pin D-sub (db-9)
  • 1 X Keyboard - Generic - 6 Pin Mini-din (ps/2 Style)
  • 1 X Mouse - Generic - 6 Pin Mini-din (ps/2 Style)
  • 4 X Hi-speed Usb - 4 Pin Usb Type A ( 2 Front, 2 Rear )
  • 4 X Network - Ethernet 10base-t/100base-tx/1000base-t - Rj-45
  • 1 X Management - Hp Ilo - Rj-45
  • 2 X Display / Video - Vga - 15 Pin Hd D-sub (hd-15) ( 1 In Front )

    Power Description :
    device Type: Power Supply - Hot-plug
    power Redundancy: Yes
    installed Qty: 4
    max Supported Qty: 4
    voltage Required: Ac 120/230 V ( 50/60 Hz )
    power Provided: 1200 Watt

    Dimensions & Weight :
    width : 19 In
    depth : 27.6 In
    height : 6.9 In
    weight : 66.1 Lbs
