Detail overview

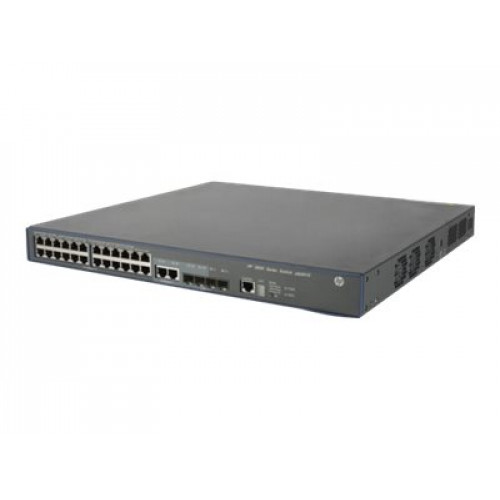

Hp - 3600-24-poe+ V2 Ei Switch (jg301c).
Key Features :
Device Type : Switch - 24 Ports - L3 - Managed
Enclosure Type : Rack-mountable - 1u
Subtype : Fast Ethernet
Ports : 24 X 10/100 (poe+) + 4 X Gigabit Sfp + 2 X Combo 1000base-t
Power Over Ethernet (poe) : Poe+
Poe Budget : 720 W
Performance : Throughput : 9.5 Mpps ¦ Routing/switching Capacity : 12.8 Gbps
Capacity : Ipv4 Routing Table Entries : 12000
Mac Address Table Size : 32000 Entries
Jumbo Frame Support : 9216 Bytes
Routing Protocol : Ospf, Rip, Is-is, Bgp, Igmpv2, Igmp, Pim-sm, Pim-dm, Igmpv3, Ospfv3, Pim-ssm, Static Ipv4 Routing, Static Ipv6 Routing, Mld, Bgp-4+, Bidirectional Forwarding Detection (bfd)
Remote Management Protocol : Snmp 1, Telnet, Snmp 3, Snmp 2c, Https, Ssh-2
Encryption Algorithm : Ssl
Authentication Method : Radius, Hwtacacs
Features : Dhcp Support, Arp Support, Syslog Support, Weighted Round Robin (wrr) Queuing, Weighted Fair Queuing (wfq), Weighted Random Early Detection (wred), Sflow, Spanning Tree Protocol (stp) Support, Rapid Spanning Tree Protocol (rstp) Support, Virtual Route Redundancy Protocol (vrrp) Support, Multiple Spanning Tree Protocol (mstp) Support, Quality Of Service (qos), Committed Access Rate (car), Device Link Detection Protocol (dldp) Support, Rapid Ring Protection Protocol (rrpp) Support, Equal-cost Multipath (ecmp), Endpoint Admission Defense (ead), Stp Root Guard, Lldp Support, Port Security, Dhcp Protection, 2mb Packet Buffer, Port Isolation, Non Blocking Ports, Strict Priority (sp), Generic Attribute Registration Protocol (garp), Intelligent Resilient Framework Technology (irf), Multicast Source Discovery Protocol (msdp)
Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3i, Ieee 802.3z, Ieee 802.1d, Ieee 802.1q, Ieee 802.1p, Ieee 802.3af, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.3ac, Ieee 802.1s, Ieee 802.1v, Ieee 802.1ab (lldp), Ieee 802.3at
Ram : 256 Mb - Sdram
Flash Memory : 128 Mb
Expansion / Connectivity :
Interfaces : 1 X Serial (console) - Rj-45 ¦ 24 X 100base-tx - Rj-45 - Poe+ ¦ 4 X Gigabit Lan - Sfp ¦ 2 X 1000base-t
