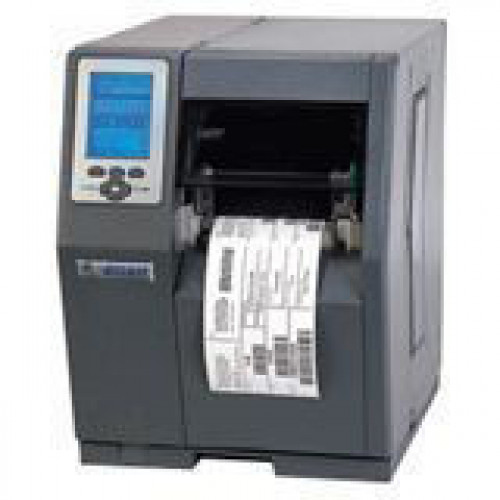

Honeywell DATAMAX H-8308X Thermal Label Printer - Monochrome - 8 in/s Mono - 300 dpi - Parallel, Serial, USB - Ethernet - TAA Compliance C83-00-48000004

DATAMAX H-8308X Thermal Label Printer - Monochrome - 8 in/s Mono - 300 dpi - Parallel, Serial, USB - Ethernet - TAA Compliance

The Datamax H-8308X is the most advanced and feature-rich printer solution designed for today''s dynamic enterprise applications. H-8308X printers provide throughput that is up to twice as fast as other printers in its class and its gear-driven design provides rugged and reliable performance for 24x7 mission-critical service.

Technical Specifications:
Recommended Use: Label Print
Print Color Capability: Monochrome
Maximum Mono Print Speed: 8 in/s
Maximum Print Resolution (dpi): 300
Maximum Print Width: 8.52"
Barcode Symbology Supported: Code 39, UPC-A, UPC-E, Interleaved 2 of 5, Code 128, EAN-8, EAN-13, HIBC, Codabar, Plessey, UPC 2 and 5 Digit Extension, Code 93, POSTNET, UCC/EAN 128, Telepen, UPS Maxi Code, FIM, PDF-417, USD-8, Data Matrix, QR Code, Aztec Code, TLC 39, Micro PDF-417, RSS
Standard Memory: 16 MB
Memory Technology: SDRAM
Flash Memory: 8 MB
Parallel Port: Yes
Serial Port: Yes
USB: Yes
Ethernet: Yes
Ethernet Technology: Ethernet
Media Type: Roll Fed, Fanfold, Die-cut Label, Continuous Label, Perforated Label, Continuous Tag, Ticket Stock
Media Sensor: Reflective Media Sensor
Maximum Roll Diameter: 8"
Maximum Label Width: 9"
Maximum Label Length: 99.99"
Label Core Size: 3"
Ribbon Core Size: 1"
Input Voltage: 110 V AC, 220 V AC
Height: 16.4"
Width: 17"
Depth: 19.3"
Additional Information:

Real Time Clock:

Printer stores time and date with battery backup; Time stamp at print capability

Graphics Support:

PCX, .BMP, .IMG, and Datamax ASCII Format files
Platform Supported: PC
Certifications & Standards:

Safety Standard

FCC, CE
