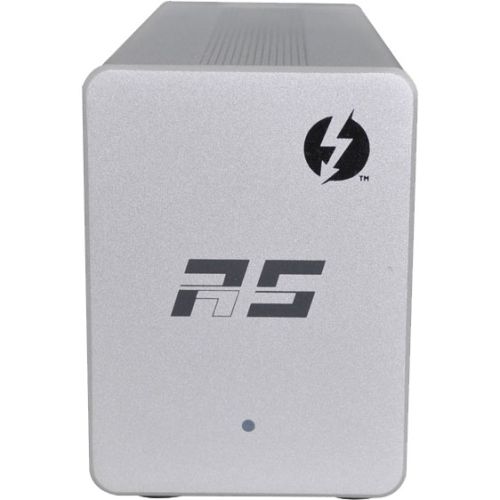

HighPoint RocketStor 6328 Thunderbolt2 RAID Adapter - 6Gb/s SAS - Thunderbolt - External - RAID Supported - 0, 1, 5, 6, 10, 50, JBOD RAID Level - 2 Total SAS Port(s) - 2 Thunderbolt Port(s) - 2 SAS Port(s) External RS6328

HighPoint RocketStor 6328 Thunderbolt2 RAID Adapter - 6Gb/s SAS - Thunderbolt - External - RAID Supported - 0, 1, 5, 6, 10, 50, JBOD RAID Level - 2 Total SAS Port(s) - 2 Thunderbolt Port(s) - 2 SAS Port(s) External

The RocketStor 6328 combines the features of hardware RAID solutions and Thunderbolt™ 2 PCIe expansion into a palm-sized adapter: ideal for compact/portable computing platforms! Host hardware RAID, SAS Expansion, SATA port Multiplier, and LTO Tape devices from a single adapter! For Mac Thunderbolt platforms and OS X 10.9.x and later.

Technical Specifications:
Host Interface: Thunderbolt
Controller Type: 6Gb/s SAS
RAID Supported: Yes
RAID Levels: 0, 1, 5, 6, 10, 50, JBOD
Total Number of SAS Ports: 2
Number of SAS Ports (External): 2
SAS Connector Details: 2 x SFF-8088
Number of Thunderbolt Ports: 2
Height: 3.6"
Width: 2.6"
Depth: 7"
Form Factor: External
Weight (Approximate): 3.64 lb
Platform Supported: Mac, PC
Additional Information: Host Interface/Ports: Dual Thunderbolt™ 2 ports, Data Transfer Rate: 20Gbps Bi-directional, Device Ports: Dual External Mini-SAS ports (SFF-8088), Devices Interface: Mini-SAS, eSATA (Port Multiplier) (cable sold separately), No. of Disk(s): Directly supports up to 8 SAS/SATA HDD/SSD, up to 20 via SATA Port Multiplier, up to 128 via SAS Expander, RAID Levels: Integrated Hardware RAID 0, 1, 5, 6, 10, 50 & JBOD, Backwards Compatibility: backward compatible with single disks/RAID array created with HighPoint RAID HBA, Mac OS X RAID configurations, Dual-Storage Modes: LTO Tape and RAID Arrays, System Support: Mac and PC Systems with a Thunderbolt™ port, O.S. Support: Mac OS X 10.8.6 or greater and Windows 7 and 8. LTO Tape support requires OS X 10.9.x or later., RAID Suite: User friendly Browser-based Management Interface, Product Support: US based Phone/Skype support (Monday-Friday 9am-6pm PST, except public holiday), Monitoring and Management Support: SMTP, SGPIO, SES2, LED Status, Event Log
Environmentally Friendly: Yes
Environmental Certification: RoHS
Country of Origin: China
