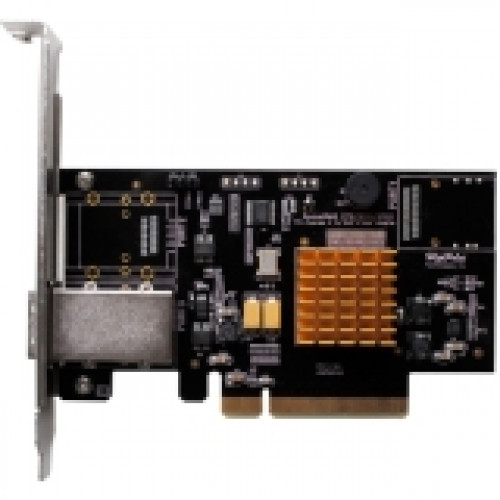

HighPoint RocketRAID 2711 4-port SAS RAID Controller - Serial ATA/600 - PCI Express 2.0 x8 - Plug-in Card - RAID Supported - 0, 1, 5, 6, 10, JBOD RAID Level - 1 Total SAS Port(s) - 1 SAS Port(s) External - RoHS Compliance RR2711

HighPoint RocketRAID 2711 4-port SAS RAID Controller - Serial ATA/600 - PCI Express 2.0 x8 - Plug-in Card - RAID Supported - 0, 1, 5, 6, 10, JBOD RAID Level - 1 Total SAS Port(s) - 1 SAS Port(s) External - RoHS Compliance

RocketRAID 272x/1x HBA''s are versatile, cost effective PCIe 2.0 x8 6Gb/s SAS connectivity solutions that offer LTO Tape and RAID support for Windows 8.1/8/7 and Linux kernels 2.6.x and later.The RocketRAID 2711''s single external mini-SAS port can directly support up to 4 SAS/SATA HDD''s/SSD''s in RAID 0, 1, 5, 6, 10, 50 and JBOD configurations.Dual-Storage Modes: LTO Tape + RAID ArraysRocketRAID 272x/271x series HBA''s are fully compliant with the Industry Serial Attached SCSI Specification, which allows them to support LTO tape drives and SAS/SATA Hard Disk Drives, simutaneously, for Windows 8.1/8/7 and Linux PC Platforms.

Technical Specifications:
Host Interface: PCI Express 2.0 x8
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 0, 1, 5, 6, 10, JBOD
Maximum Data Transfer Rate: 6
Total Number of SAS Ports: 1
Number of SAS Ports (External): 1
SAS Connector Details: 1 x SFF-8088
Height: 0.1"
Width: 2.7"
Depth: 4.7"
Form Factor: Plug-in Card
Card Height: Low-profile
Platform Supported: PC
Additional Information: Host Interface: PCIe 2.0 x8, Data Transfer Rate: Up to 6Gb/s per channel, Device Ports: 1x External Mini-SAS port (SFF-8088), Devices Interface: Mini-SAS, SATA (cables sold separately), No. of Disk(s): Directly supports up to 4 SAS/SATA HDD/SSD, up to up to 128 via SAS Expander, RAID Levels: RAID 0, 1, 5, 6, 10, 50 & JBOD, Backwards Compatibility: backward compatible with single disks/RAID array created with HighPoint RAID HBA, Dual-Storage Modes: LTO Tape and RAID Arrays, System Support: Mac and PC Systems with PCIe support, O.S. Support: Mac OS X 10.8.6 or greater and Windows 7 and 8. LTO Tape support requires Windows 8.1/8/7 or Linux Kernel 2.6 and later., RAID Suite: User friendly Browser-based Management Interface, Monitoring and Management Support: SMTP, LED Status, Event Log
Environmentally Friendly: Yes
Environmental Certification: RoHS
Country of Origin: China
