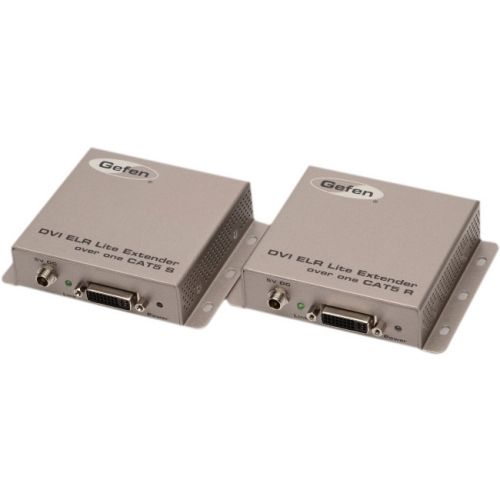

Gefen DVI ELR Lite Extender Over One CAT5 - 1 Input Device - 1 Output Device - 230 ft Range - 2 x Network (RJ-45) - 1 x DVI In - 1 x DVI Out - WUXGA - 1920 x 1200 - Category 6a - Surface-mountable EXT-DVI-1CAT5-SR

Gefen DVI ELR Lite Extender Over One CAT5 - 1 Input Device - 1 Output Device - 230 ft Range - 2 x Network (RJ-45) - 1 x DVI In - 1 x DVI Out - WUXGA - 1920 x 1200 - Category 6a - Surface-mountable

Extend DVI up to 230 feet (70 meters) over one CAT-6A cable, or up to 200 feet (60 meters) over one CAT-5e The DVI ELR Lite Extender over one CAT5 allows the extension of any DVI source to a monitor or touch screen display, up to 230 feet (70 meters) using a CAT-6A cable, and up to 200 feet (60 meters) over one CAT-5e. This product is HDCP compliant. It uses Gefen''s ELR Lite implementation of HDBaseT® Lite™ technology, allowing the DVI source to be extended over a single CAT-5e or CAT-6 cable, reducing cable costs and facilitating simple and effective installation.

Warning: This product can expose you to chemicals including Vinyl Chloride, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.

Technical Specifications:
Connectivity Technology: Wired
Number of Input Devices Supported: 1
Number of Output Devices Supported: 1
Maximum Operating Distance: 230 ft
Graphics Modes: WUXGA
Maximum Video Resolution: 1920 x 1200
Network (RJ-45): Yes
DVI In: Yes
DVI Out: Yes
Number of Network (RJ-45) Ports: 2
Number of DVI Inputs: 1
Number of DVI Outputs: 1
Media Type Supported: Twisted Pair
Twisted Pair Cable Standard: Category 6a
Input Voltage: 5 V DC
Transmitter Height: 1"
Transmitter Width: 4.30"
Transmitter Depth: 3.40"
Form Factor: Surface-mountable
Transmitter Weight (Approximate): 3.09 lb
Package Contents: 1 x DVI ELR Lite Extender over one CAT5 - Sender Unit, 1 x DVI ELR Lite Extender over one CAT5 - Receiver Unit, 1 x 6 ft. Dual Link DVI Copper Cable, 2 x 5V DC Locking Power Supplies, 1 x Quick-Start Guide
