Gefen 4K Ultra HD HDBaseT Extender - 1 Input Device - 1 Output Device - 492.13 ft Range - 2 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - Serial Port - 4K - 4096 x 2160 - Twisted Pair - Category 6a - Surface-mountable GTB-UHD-HBT

Gefen 4K Ultra HD HDBaseT Extender - 1 Input Device - 1 Output Device - 492.13 ft Range - 2 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - Serial Port - 4K - 4096 x 2160 - Twisted Pair - Category 6a - Surface-mountable

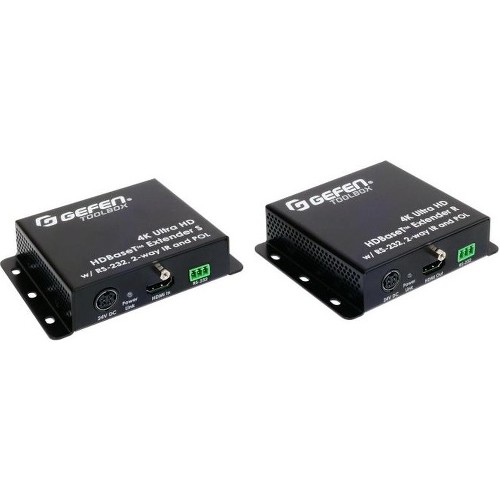

Gefen GTB-UHD-HBT 4K Ultra HD HDBaseT™ Extender over one CAT-5 with RS-232, 2-way IR, and Bi-Directional POL The GTB-UHD-HBT 4K Ultra HD Extender uses Gefens implementation of the latest HDBaseT technology to extend HDMI up to 495 feet/150 meters at 1080p (8 bits) and up to 330 feet/100 meters at 4K. Small, low profile enclosures can be securely surface-mounted and conveniently hidden away from sight. Video Support Resolutions up to 4K Ultra HD (3860 x 2160 at 60 Hz, 4:2:0) are supported. This product is compliant with the latest HDCP 2.2 protocol as well as HDCP 1.4. Audio Support The GTB-UHD-HBT supports Stereo and Multichannel digital audio including 7.1 channels of LPCM as well as High Bit Rate (HBR) digital audio formats such as Dolby® TrueHD and DTS-HD Master Audio. TOSLINK® Optical Digital Audio can be sent from the display side back to the source and analog audio can be extended from the source side to the Receiver. IP & Serial Extension This product provides RS-232 and 2-way IR extension between the Sender and the Receiver units, facilitating the control of A/V sources placed near the Sender unit and sending automation commands to the display or another device placed near the Receiver unit. Bi-Directional Power Over HDBaseT Gefen Bi-Directional POL (Power Over Line) technology powers the Sender or the Receiver unit using the same cable that extends the HDMI signal. Only one of the two units will need a power supply. This feature simplifies installation in cases when an electrical outlet may not be available near the source or the display.

Technical Specifications:
Connectivity Technology: Wired
Number of Input Devices Supported: 1
Number of Output Devices Supported: 1
Maximum Operating Distance: 492.13 ft
Graphics Modes: 4K
Maximum Video Resolution: 4096 x 2160
Network (RJ-45): Yes
HDMI In: Yes
HDMI Out: Yes
Serial Port: Yes
Number of Network (RJ-45) Ports: 2
Number of HDMI Inputs: 1
Number of HDMI Outputs: 1
Media Type Supported: Twisted Pair
Twisted Pair Cable Standard: Category 6a
Transmitter Height: 6"
Transmitter Width: 12.10"
Transmitter Depth: 4.25"
Form Factor: Surface-mountable
Transmitter Weight (Approximate): 2.30 lb
Package Contents:

Transmitter, Receiver, 2 x 3-pin Phoenix - DB-9 Adaptor Cable
