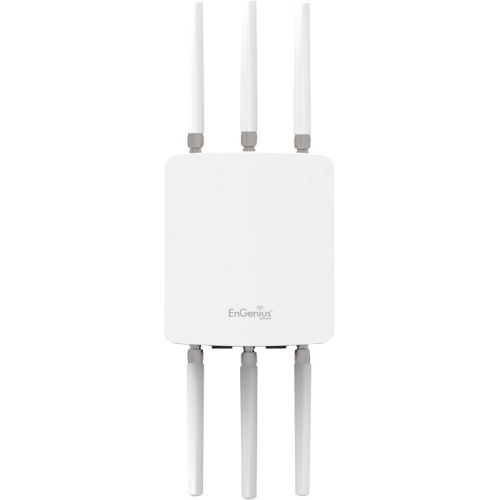

ENGENIUS Neutron EWS860AP IEEE 802.11ac 1.71 Gbit/s Wireless Access Point - ISM Band - UNII Band - 2.40 GHz, 5 GHz - 6 x Antenna(s) - 6 x External Antenna(s) - 2 x Network (RJ-45) - PoE Ports - Pole-mountable EWS860AP

EnGenius Neutron EWS860AP IEEE 802.11ac 1.71 Gbit/s Wireless Access Point - ISM Band - UNII Band - 2.40 GHz, 5 GHz - 6 x Antenna(s) - 6 x External Antenna(s) - 2 x Network (RJ-45) - PoE Ports - Pole-mountable

The EWS860AP is a high-powered, long-range, 3x3 Dual Band Neutron Series Managed Wireless solution AC1750 802.11a/b/g/n/ac Outdoor Access Point that functions as a stand-alone Access Point or as part of an EnGenius Neutron Series Wireless Management solution. It features a high transmit RF power for better outdoor signal penetration. The EWS860AP can operate as a stand-alone Access Point connecting to third-party PoE-capable switches but more control and versatile management of the Access Point is achievable when it is part of an EnGenius Neutron Series Wireless Network Management solution because the AP includes firmware that enables it to be immediately discovered, configured, monitored and managed from a compatible Neutron Series PoE+ Switch (EWS5912FP, EWS7928FP or EWS7952FP). This capability enables IT managers to deploy and manage up to 50 EWS860APs from a Neutron Series Switch allowing for simplified management from one browser-based interface including simultaneous firmware upgrades, clustering, traffic monitoring, bandwidth steering and many other features that can be reset or reconfigured from the convenience of the IT manager''s desktop.

Technical Specifications:
Wireless LAN Standard: IEEE 802.11ac
Frequency Band: 2.40 GHz, 5 GHz
ISM Band: Yes
UNII Band: Yes
ISM Minimum Frequency: 2.41 GHz
ISM Maximum Frequency: 2.48 GHz
UNII Minimum Frequency: 5.18 GHz
UNII Maximum Frequency: 5.83 GHz
Total Number of Antennas: 6
Number of External Antennas: 6
Antenna Gain (Isotropic): 5 dBi, 7 dBi
Wireless Transmission Speed: 1.71 Gbit/s
Wireless Security: WEP, WPA-PSK, WPA2-PSK, WPA-PSK Mixed, WPA-Enterprise, WPA2- Enterprise, WPA-Mixed Enterprise, WPS
Features: LED Indicator, Quality of Service (QoS), Water Proof, Cable Lock Slot
Data Encryption: Yes
Encryption Standard: WPA, WPA2, WPA-PSK, WPA2-PSK, WPA2-ENT, WEP
Ethernet Technology: Ethernet, Fast Ethernet, Gigabit Ethernet
Number of Network (RJ-45) Ports: 2
Network (RJ-11): No
PoE (RJ-45) Port: Yes
VGA: No
HDMI: No
Audio Line Out: No
Serial Port: No
USB: No
Powerline: No
Management: DHCP, SNMP V1, V2c, V3, MIB, CLI, SysLog, Web Based Management
Input Voltage: 12 V DC
Form Factor: Pole-mountable
Weight (Approximate): 4.17 lb
Package Contents: Neutron EWS860AP Wireless Access Point, 12V/2A Power Adapter, 3 x 5 dBi Antennas for 2.4 GHz, 3 x 7 dBi Antennas for 5 GHz, Pole Mounting Bracket, RJ-45 Ethernet Cable, Quick Installation Guide
Certifications & Standards: FCC, ICIEEE Standards:
802.11a, 802.11b, 802.11g, 802.11n, 802.11ac, 802.3at, 802.3af, 802.1q, 802.1d, 802.1X
Country of Origin: Taiwan
