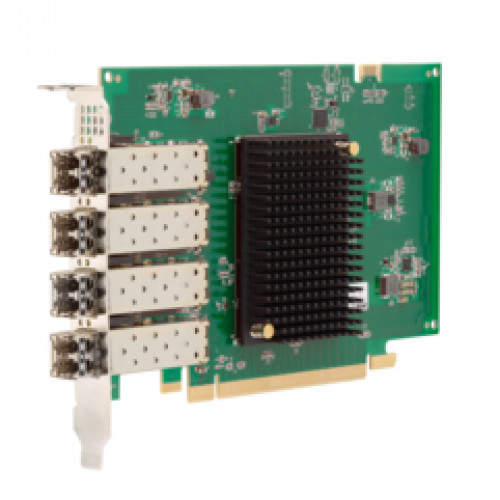

EMULEX 32g/64g Quad-port Pcie Gen 3 X16 Fibre Channel Host Bus Adapter LPE35004

Detail overview

Emulex 32g/64g Quad-port Pcie Gen 3 X16 Fibre Channel Host Bus Adapter

Technical Specification

Physical Dimensions 111.15mm X 167.64mm (4.376” X 6.600”)

Generation : Gen 7 (64/32gfc)

Cable Support : 0.5m To 100m At 64gfc/32gfc On 50/125 Μm Om4 Mmf, 0.5m To 100m At 64gfc/32gfc On 50/125 Μm Om5 Mmf, 0.5m To 70m At 64gfc/32gfc On 50/125 Μm Om3 Mmf, 10 Km At 32gfc/16gfc On 9/125 Μm Singlemode Fiber When Emulex Approved Longwave Transceivers Are Used

Optical Data Rates : 28.05 Gb/s (3200mb/s), 14.025 Gb/s (1600mb/s), 8.5 Gb/s (800mb/s) (auto-detected)

Hardware Environment: Intel X64, Intel X86, And Powerpc

Ports: 4

Optics : Optics Short Wave Lasers With Lc Type Connector Optics

Host Bus Type: Pcie Gen3 X16

I/o Controller: Xe601

Operating Humidity: 5% To 95% Non-condensing

Operating Temperature: 0°c To 55°c

Storage Temperature: -20° To 85°c (-4° To 185°f)

Os Support: Additional Support Is Available From Oems And Partners, Microsoft Windows, Oracle Linux, Oracle Linux With The Unbreakable Enterprise Kernel (uek), Oracle Solaris, Red Hat Enterprise Linux, Suse® Linux Enterprise Server, Vmware Vsphere

Industry Standards Current Ansi/ietf Standards: Fc-pi-4, Fc-da, Fc-da-2, Fc-fs, Fc-fs-3, Fc-fs-4, Fc-fs-5, Fc-gs-2/3/4/5, Fc-gs-6, Fc-gs-7, Fc-ls-2, Fc-ls-3, Fc-mi, Fc-nvme, Fc-nvme/am1, Fc-ph, Fc-ph-2, Fc-ph-3, Fc-pi, Fc-pi-2, Fc-pi-3, Fc-pi-4, Fc-pi-5, Fc-pi-6, Fc-pi-7, Fc-tape, Fcp-2/3, Fcp-4, Legacy Ansi/ietf Standards: Fc-ph, Sbc-3, Spc-3, Spc-4, Ssc-2, Ssc-3, Ssc-4
