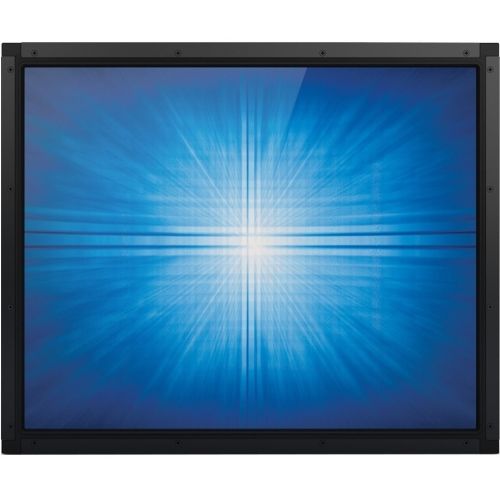

Elo 1990L 19" Open-frame LCD Touchscreen Monitor - 5:4 - 5 ms - Projected Capacitive - 1280 x 1024 - SXGA - 16.7 Million Colors - 1,000:1 - 250 Nit - LED Backlight - HDMI - USB - VGA - Black - TÃœV, RoHS, Chi

Elo 1990L 19" Open-frame LCD Touchscreen Monitor - 5:4 - 5 ms - Projected Capacitive - 1280 x 1024 - SXGA - 16.7 Million Colors - 1,000:1 - 250 Nit - LED Backlight - HDMI - USB - VGA - Black - TÃœV, RoHS, Chi
Brand: ELO
Part Number: E330817
MSRP: $763.99
Availability: 10 or more
Condition: New
Price: $636.50
Qty:     - OR -   Add to Wish List
Add to Compare
Elo 1990L 19" Open-frame LCD Touchscreen Monitor - 5:4 - 5 ms - Projected Capacitive - 1280 x 1024 - SXGA - 16.7 Million Colors - 1,000:1 - 250 Nit - LED Backlight - HDMI - USB - VGA - Black - TÃœV, RoHS, China RoHS, WEEE - 3 Year - TAA Compliance

The Elo 1990L 19-inch open-frame LCD touchscreen features a slim design and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact display is designed for touch, with proven Elo expertise and reliability built in. The 1990L provides stable, drift-free operation with outstanding image clarity and light transmission-for accurate touch responses and vivid images. Instantly grabbing and holding users'' attention, the open-frame touchscreen is perfect for kiosks, casino and amusement, retail self-service, and industrial automation environments.Easily integrated.The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected.Touch ready.Available with a choice of industry-leading touch technologies, in single- or multi-touch technology, including IntelliTouch® single-touch surface acoustic wave (SAW), and our latest multi-touch TouchPro™ PCAP two-glass solution (2GS) technology has a zero-bezel that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality-both modes support single or dual latex gloves as well as cloth gloves.Commercial-grade.The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution with touch integrated from the start. Using our own touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life testing processes. All of our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.Other features. Projected capacitive (PCAP) two glass solution (2GS) offers pristine optical clarity and touch durability that passes UL-60950 & IK-07 impact testing LED backlighting allows for state-of-the-art slim design while reducing power consumption 10-touch TouchPro projected capacitive (PCAP) with two-touch thru-glass capabilities Display Port and VGA video interfaces


Technical Specifications:
Screen Size Class: 19"
Viewable Screen Size: 19"
Screen Mode: SXGA
Response Time: 5 ms
Aspect Ratio: 5:4
Mount Type: Front Mount, Rack-mountable
Backlight Technology: LED
Maximum Resolution: 1280 x 1024
Color Supported: 16.7 Million Colors
Contrast Ratio: 1,000:1
Brightness: 250 Nit
Touchscreen Type: Projected Capacitive
HDMI: Yes
USB: Yes
VGA: Yes
DisplayPort: Yes
VESA Mount Compatible: Yes
Product Color: Black
Height: 13.5"
Width: 16.3"
Depth: 2"
Weight (Approximate): 10.14 lb
Package Contents:
    1990L 19" Open Frame Touchscreen (Rev B), HDMI cable , VGA Cable , RJ45 OSD Remote , Touch USB Cable , User Manual CD , Quick Install Guide , "L" (Side Mount) Brackets and w/Screws , EEI Label, Japan Class-B TM info sheet

Environmentally Friendly: Yes
Environmental Certification: TÜV, RoHS, China RoHS, WEEE
