Elo 1790L 17" Open-frame LCD Touchscreen Monitor - 5:4 - 5 ms - IntelliTouch Surface Wave - 1280 x 1024 - SXGA - 16.7 Million Colors - 800:1 - 250 Nit - LED Backlight - HDMI - USB - VGA - Black - TÃœV, RoHS,

Elo 1790L 17" Open-frame LCD Touchscreen Monitor - 5:4 - 5 ms - IntelliTouch Surface Wave - 1280 x 1024 - SXGA - 16.7 Million Colors - 800:1 - 250 Nit - LED Backlight - HDMI - USB - VGA - Black - TÃœV, RoHS, China RoHS, WEEE - 3 Year - TAA Compliance

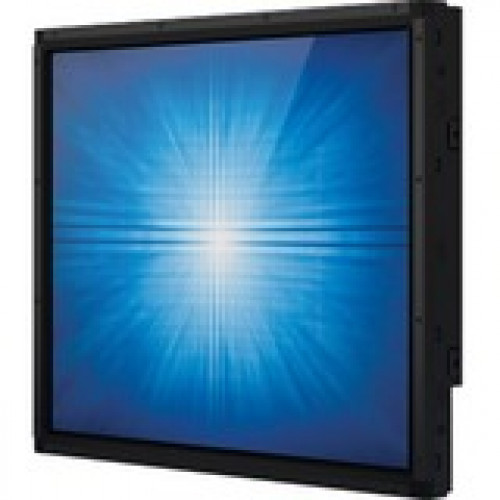

Elo 1790L Open Frame Touchscreen Display The Elo 1790L 17-inch open frame touchscreen display delivers an industrial-grade solution that is cost-effective for OEMs and systems integrators requiring a reliable product for their customers. Designed with reliability from the start, Elo''s open frames deliver outstanding image clarity and light transmission with stable, drift-free operation for accurate touch responses. The 90-Series product line is available in a wide range of sizes, touch technologies and brightness, offering the versatility needed for commercial kiosk applications from self-service and gaming to industrial automation and healthcare.

Technical Specifications:
Screen Size Class: 17"
Viewable Screen Size: 17"
Screen Mode: SXGA
Screen Surface: Anti-glare
Panel Technology: Thin Film Transistor (TFT)
Response Time: 5 ms
Aspect Ratio: 5:4
Horizontal Viewing Angle: 170°
Vertical Viewing Angle: 160°
Mount Type: Front Mount, Rack-mountable
Backlight Technology: LED
Features: On-screen Display (OSD), Anti-glare
Horizontal Frequency: 30 kHz to 82 kHz
Vertical Frequency: 50 Hz to 75 Hz
Curved Screen: No
Maximum Resolution: 1280 x 1024
Color Supported: 16.7 Million Colors
Contrast Ratio: 800:1
Native Contrast Ratio: 1,000:1
Brightness: 250 Nit, 225 Nit
Touchscreen: Yes
Touchscreen Type: IntelliTouch Surface Wave
HDMI: Yes
HDMI Version: 1.3
USB: Yes
USB Standard: USB 2.0
VGA: Yes
DisplayPort: Yes
DisplayPort Version: 1.1a
Serial Port: Yes
Operating Power Consumption: 17.80 W
Standby Power Consumption: 1.50 W
Off-Mode Power Consumption: 500 mW
Energy Consumption per Year: 30 kWh
VESA Mount Compatible: Yes
VESA Mount Standard: 100 x 100
Product Color: Black
Height: 12.1"
Width: 14.5"
Depth: 1.9"
Weight (Approximate): 7.94 lb
Package Contents:

1790L 17" Open Frame Touchscreen (Rev B), HDMI cable , VGA Cable , RJ45 OSD Remote , Touch USB Cable , Quick Install Guide , EEI Label , Japan Class-B TM info sheet, Side Mount Brackets and w/Screws

Mean Time Between Failures (MTBF): 5.7 Year
Environmentally Friendly: Yes
Environmental Certification: TÜV, RoHS, China RoHS, WEEE
Country of Origin: China
TAA Compliant: No
