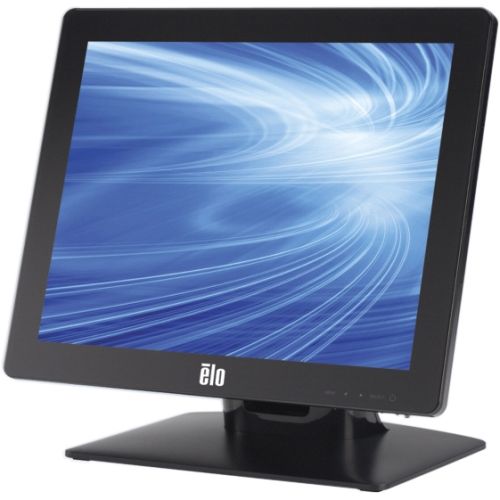

Elo 1517L 15" LCD Touchscreen Monitor - 4:3 - 16 ms - 5-wire Resistive - 1024 x 768 - XGA-2 - Adjustable Display Angle - 16.2 Million Colors - 700:1 - 250 Nit - LED Backlight - USB - VGA - Black - RoHS, WEEE, China RoHS - 3 Year - TAA Compliance E523

Elo 1517L 15" LCD Touchscreen Monitor - 4:3 - 16 ms - 5-wire Resistive - 1024 x 768 - XGA-2 - Adjustable Display Angle - 16.2 Million Colors - 700:1 - 250 Nit - LED Backlight - USB - VGA - Black - RoHS, WEEE, China RoHS - 3 Year - TAA Compliance E523
Brand: ELO
Part Number: E523163
MSRP: $689.99
Availability: 10 or more
Condition: New
Price: $574.56
Qty:     - OR -   Add to Wish List
Add to Compare
Elo 1517L 15" LCD Touchscreen Monitor - 4:3 - 16 ms - 5-wire Resistive - 1024 x 768 - XGA-2 - Adjustable Display Angle - 16.2 Million Colors - 700:1 - 250 Nit - LED Backlight - USB - VGA - Black - RoHS, WEEE, China RoHS - 3 Year - TAA Compliance

The 1517L touchmonitor is built to withstand the rigors of continuous public use with a rugged "built for touch" design. Its stylish, thin and modern look is coupled with a retail-focused feature set and is an attractive solution for commercial touchmonitor needs. It is well suited for high use public venues where point-of-sale, point-of-information, point-of-service, shelf-level and countertop interactive digital signage and loyalty systems are found.


Technical Specifications:
Screen Size Class: 15"
Viewable Screen Size: 15"
Screen Mode: XGA-2
Screen Surface: Anti-glare
Response Time: 16 ms
Aspect Ratio: 4:3
Horizontal Viewing Angle: 160°
Vertical Viewing Angle: 140°
Adjustable Display Angle: Yes
Mount Type: Desk Mountable, Wall Mountable, Pole Mount
Backlight Technology: LED
Features: Security Lock
Horizontal Frequency: 60 kHz
Maximum Resolution: 1024 x 768
Standard Refresh Rate: 75 Hz
Color Supported: 16.2 Million Colors
Contrast Ratio: 700:1
Brightness: 250 Nit
Touchscreen: Yes
Touchscreen Type: 5-wire Resistive
USB: Yes
VGA: Yes
Serial Port: Yes
Input Voltage: 110 V AC, 220 V AC, 12 V DC
Operating Power Consumption: 12 W
Standby Power Consumption: 1.70 W
Off-Mode Power Consumption: 1.30 W
VESA Mount Compatible: Yes
VESA Mount Standard: 75 x 75
Product Color: Black
Height with Stand: 12.50"
Width with Stand: 14.10"
Depth with Stand: 7.80"
Weight (Approximate): 9.48 lb
Package Contents: 1517L Rev B 15-inch Multifunction Desktop, Detachable Touch and Video Cables, Power Cable
Certifications & Standards: C-Tick, cUL, IC, CCC, CE, VCCI, KCC, e-Standby, CoC, BSMI, UL, FCC, CB, IMERC, IEC 60320 C6
Platform Supported: PC
Environmentally Friendly: Yes
Environmental Certification: RoHS, WEEE, China RoHS
