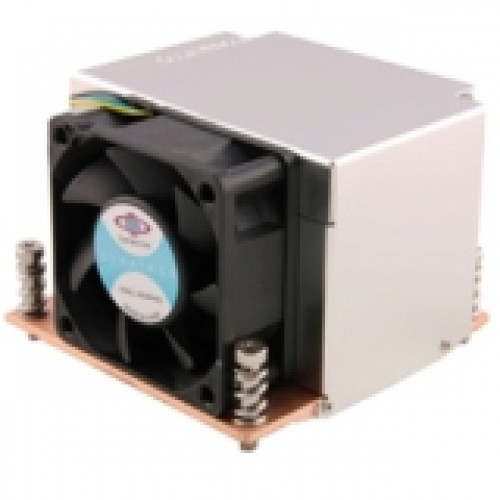

Dynatron Cooling Fan/Heatsink - 1 x 60 mm - Dual Ball Bearing - Socket R LGA-2011 Compatible Processor Socket - RoHS Compliance R5

Specifications

• Mfr Part Number: R5
• CPU Application: Intel Socket 2011; Square Type, 80 x 80mm mounting pitch; Supports Intel Sandy Bridge EP/EX Processors up to 150 Watts
• Material: H.C.C.(Heatpipes Contact CPU) Copper Base & Aluminum Fins with Heatpipes embedded
• Fan:
  • Speed:
    • At Duty Cycle 0~20%: 1600 RPM
    • At Duty Cycle 50%: 4000 RPM
    • At Duty Cycle 100%: 8000 RPM
  • Bearing: 2 Ball Bearing
  • Rated Voltage: 12 V
  • Power:
    • At Duty Cycle 0~20%: 0.6 W
    • At Duty Cycle 50%: 1.8 W
    • At Duty Cycle 100%: 7.2 W
  • Air Flow:
    • At Duty Cycle 0~20%: 8.75 CFM
    • At Duty Cycle 50%: 21.88 CFM
    • At Duty Cycle 100%: 43.75 CFM
  • Noise Level:
    • At Duty Cycle 0~20%: 16.85 dBA
    • At Duty Cycle 50%: 35.94 dBA
    • At Duty Cycle 100%: 51.0 dBA
  • Air Pressure:
    • At Duty Cycle 0~20%: 0.70 mm-H2O
    • At Duty Cycle 50%: 4.42 mm-H2O
    • At Duty Cycle 100%: 17.70 mm-H2O
  • Lead Wire Pin Out:
    • Pin1-Black (-)
    • Pin2-Yellow (+)
    • Pin3-Green (Techometer/Signal output)
    • Pin4-Blue (PWM)
• Dimensions:
  • Fan: 60.0 x 60.0 x 25.0 mm
  • Overall: 91.5 x 91.5 x 66.0 mm
• Weight: 590.0 g
• RoHS Compliant
