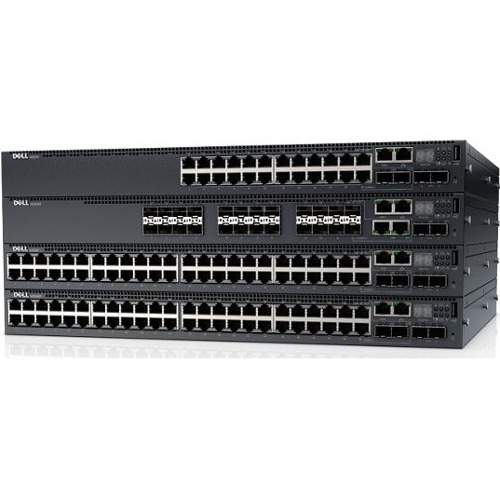

Dell EMC N3024EF-ON Layer 3 Switch - 2 Ports - Manageable - TAA Compliant - 3 Layer Supported - Modular - Optical Fiber, Twisted Pair - 1U High - Rack-mountable, Rail-mountable - Lifetime Limited Warranty - TAA Compliance N3024EF-ON

Dell EMC N3024EF-ON Layer 3 Switch - 2 Ports - Manageable - TAA Compliant - 3 Layer Supported - Modular - Optical Fiber, Twisted Pair - 1U High - Rack-mountable, Rail-mountable - Lifetime Limited Warranty - TAA Compliance N3024EF-ON
Brand: Dell
Part Number: N3024EF-ON
MSRP: $5,206.99
Availability: 10 or more
Condition: New
Price: $4,338.95
Qty:     - OR -   Add to Wish List
Add to Compare
Dell EMC N3024EF-ON Layer 3 Switch - 2 Ports - Manageable - TAA Compliant - 3 Layer Supported - Modular - Optical Fiber, Twisted Pair - 1U High - Rack-mountable, Rail-mountable - Lifetime Limited Warranty - TAA Compliance

Energy-efficient, cost-effective 1GbE switches for modernizing and scaling network infrastructureThe N3000 switch series offers a power-efficient and resilient Gigabit Ethernet (GbE) switching solution with integrated 10GbE uplinks for advanced Layer 3 distribution for offices and campus networks. The series has high-performance capabilities and wire-speed performance utilizing a non-blocking architecture to easily handle unexpected traffic loads. Use dual internal hot-swappable 80PLUS-certified power supplies for high availability and power efficiency. The switches offer simple management and scalability via an 84Gbps (full duplex) high-availability stacking architecture that allows management of up to 12 switches from a single IP address. Note: With OS 6.5.1.x and higher, max stack for N3000 series is 8; however, N3000E series and N3132PX-ON support max stack of 12 members. N3000 series can be stacked with N3000E series; however, stack size is limited to 8 and active VLANs to 1024.Modernize campus network architecturesModernize campus network architectures with a power-efficient and resilient 1/10GbE switching solution with dense Power over Ethernet Plus (PoE+) and PoE 60W. Select N3000 models offer 24 or 48 ports of PoE+, or up to 32 ports of PoE 60W to deliver clean power to network devices such as wireless access points (APs), Voice-over-IP (VoIP) handsets, video conferencing systems and security cameras. For greater interoperability in multivendor networks, N3000 series switches offer the latest open-standard protocols and include technology to interface with Cisco protocol RPVST+ and devices using CDP.Achieve high availability and full bandwidth utilization with Multi-chassis Link Aggregation (MLAG). N3000 series switches support MLAG to create active/active loop-free redundancy without spanning tree. Server rooms can deliver reliable server and storage connectivity with features to help save time and avoid configuration errors. N3000 supports VRFlite, allowing it to be partitioned into multiple virtual routers with isolated control and data planes on the same physical switch. The N3000 series is also fully tested and validated to work with Dell EMC EqualLogic™ PSSeries storage arrays.Leverage familiar tools and practicesAll N-Series switches include Dell EMC Networking OS 6, designed for easier deployment, greater interoperability and a lower learning curve for network administrators. OS 6 common command line interface (CLI) and graphic user interface (GUI) are intuitive, so skilled network administrators can get productive quickly. Select N3000 switches now support the Open Network Install Environment (ONIE), enabling installation of alternate network operating systems.Deploy with confidence at any scaleN3000 series switches help create performance assurance with a data rate up to 328Gbps (full duplex) and a forwarding rate up to 428Mpps. Scale easily with built-in rear stacking ports. Switch stacks of up to 624 1GbE ports can be managed from a single screen using the highlyavailable stacking architecture for high-density aggregation with seamless redundant availability. The N-Series switches'' lifetime warranty covers software upgrades, hardware repair or replacement, and optics and cables purchased with the switch.


Technical Specifications:
Total Number of Network Ports: 2
Uplink Port: Yes
Modular: Yes
Stack Port: Yes
Port/Expansion Slot Details: 24 x Gigabit Ethernet Expansion Slot, 2 x 10 Gigabit Ethernet Expansion Slot, 2 x Gigabit Ethernet Network, 2 x Gigabit Ethernet Expansion Slot, 2 x Stack
Media Type Supported: Optical Fiber, Twisted Pair
Ethernet Technology: 10 Gigabit Ethernet, Gigabit Ethernet
Network Technology: 1000Base-X, 1000Base-SX/LX, 10GBase-X, 10/100/1000Base-T
Number of Total Expansion Slots: 28
Expansion Slot Type: SFP, SFP+
Shared SFP Slot: Yes
Number of SFP Slots: 26
Number of SFP+ Slots: 2
Layer Supported: 3
Manageable: Yes
Power Source: Power Supply
Redundant Power Supply Supported: Yes
Compatible Rack Unit: 1U
Form Factor: Rack-mountable, Rail-mountable
Height: 1.7"
Width: 17.1"
Depth: 6"
Weight (Approximate): 13.23 lb
Package Contents:
    N3024EF-ON Layer 3 Switch, 1 x 200W PSU, RJ-45 to Female DB-9 Connector Cable

Energy Star: Yes
Environmentally Friendly: Yes
Environmental Certification: EU WEEE, REACH, RoHS, GS
TAA Compliant: Yes
