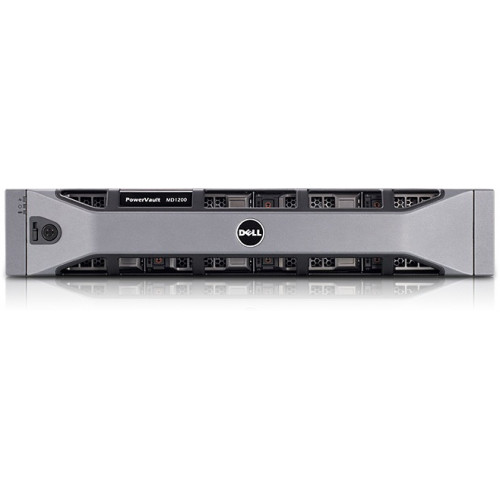

DELL Drive Enclosure 2u Rack-mountable 12 X Hdd Supported 12 X Ssd Supported 12 X Total Bay 12 X 3.5 Bay 12bay 600w Rps Rkmt Expansion Array MD1200

Detail overview

General Information:
device Type: Hard Drive Array
enclosure Type: Rack-mountable - 2u

Chassis:
installed Devices / Modules Qty: 0
supported Devices / Modules Qty: 12
supported Drives: Sas-2

Storage:
max Supported Capacity: 120 Tb
hdd Array External Interface: Sas 6gb/s

Storage Controller:
type: 2 X Raid ( Pcie 2.0 X4 )
channel Qty: 8
interface Type: Sas 6gb/s
data Transfer Rate: 600 Mbps
cache / Buffer Size ( Max ): 512 Mb
max Storage Devices Qty: 12
raid Level: Raid 0, Raid 1, Raid 5, Raid 6, Raid 10, Raid 50, Raid 60


Expansion / Connectivity:
expansion Bays: 12 (total) - Hot-swap
interfaces: 2 X Sas 6gb/s ( Input ) - 26 Pin 4x Shielded Mini Multilane Sas (sff-8088) ¦ 2 X Sas 6gb/s ( Output ) - 26 Pin 4x Shielded Mini Multilane Sas (sff-8088) ¦ 2 X Serial ( Management ) - 6 Pin Mini-din (ps/2 Style)

Power:
power Device: 2 X Internal Power Supply - Hot-plug
max Supported Qty: 2
power Redundancy: Yes
power Redundancy Scheme: 1+1
voltage Required: Ac 120/230 V - 50/60 Hz
power Provided: 600 Watt

Dimensions & Weight:
width: 17.6 In
depth: 23.7 In
height: 3.4 In
