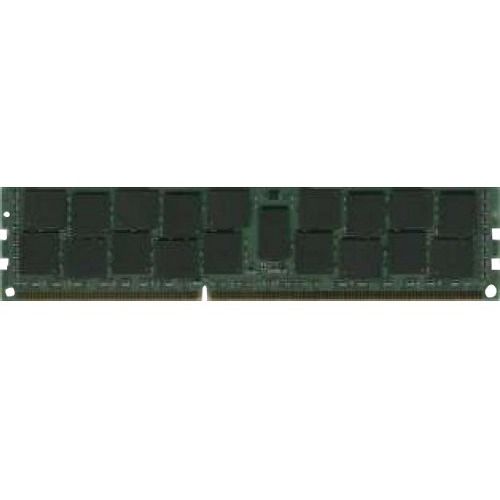

Dataram DDR3-1600, PC3-12800, Registered, ECC, 1.35V, 240-pin, 2 Ranks - For Server - 16 GB (1 x 16 GB) - DDR3-1600/PC3-12800 DDR3 SDRAM - 1.35 V - ECC - Registered - 240-pin - DIMM - TAA Compliance DRL1600RL/16GB

Dataram DDR3-1600, PC3-12800, Registered, ECC, 1.35V, 240-pin, 2 Ranks - For Server - 16 GB (1 x 16 GB) - DDR3-1600/PC3-12800 DDR3 SDRAM - 1.35 V - ECC - Registered - 240-pin - DIMM - TAA Compliance

Each DRL1600RL upgrade consists of a single DDR3-1600 Registered ECC DIMM that conforms to JEDEC''s DDR3, PC3L-12800 standard. One 2K-bit EEPROM is used for Serial Presence Detect and a combination register/PLL with Address and Command Parity is also used. A thermal sensor accurately monitors the DIMM module and can prevent exceeding the maximum operating temperature of 95C.

Technical Specifications:
Memory Size: 16 GB
Memory Technology: DDR3 SDRAM
Memory Voltage: 1.35 V
Number of Modules: 1 x 16GB
Memory Speed: 1600 MHz
Memory Standard: DDR3-1600/PC3-12800
Error Checking: ECC
Signal Processing: Registered
Device Supported: Server
Number of Pins: 240-pin
Form Factor: DIMM
Thickness: 155.1 mil
Width: 1.2"
Length: 5.3"
Compatibility: Dell PowerEdge C6220 Server
Environmentally Friendly: Yes
Environmental Certification: RoHS
