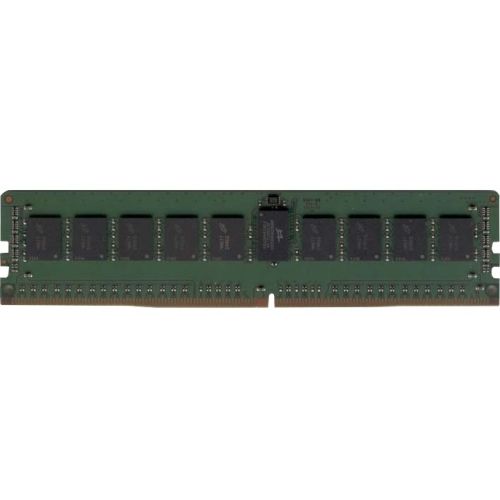

Dataram 8GB DDR4 SDRAM Memory Module - 8 GB (1 x 8 GB) - DDR4-2133/PC4-2133 DDR4 SDRAM - 1.20 V - ECC - Registered - 288-pin - DIMM DTM68105A

Dataram 8GB DDR4 SDRAM Memory Module - 8 GB (1 x 8 GB) - DDR4-2133/PC4-2133 DDR4 SDRAM - 1.20 V - ECC - Registered - 288-pin - DIMM

DTM68105A is a registered 1Gx72 memory module, which conforms to JEDEC''s DDR4-2133, PC4-2133 standard. The assembly is Dual-Rank. Each rank is comprised of nine Micron 512Mx8 DDR4- 2133 SDRAMs. One 4K-bit EEPROM is used for Serial Presence Detect and a combination register/PLL, with Address and Command Parity is also used. Both output driver strength and input termination impedance are programmable to maintain signal integrity on the I/O signals in a Fly-by topology. A thermal sensor accurately monitors the DIMM module and can prevent exceeding the maximum operating temperature of 95C.

Technical Specifications:
Memory Size: 8 GB
Memory Technology: DDR4 SDRAM
Memory Voltage: 1.20 V
Number of Modules: 1 x 8GB
Memory Standard: DDR4-2133/PC4-2133
Error Checking: ECC
Signal Processing: Registered
Number of Pins: 288-pin
Form Factor: DIMM
Width: 5.3"
Length: 1.2"
Compatibility: Intel S2600CW (Cottonwood Pass) Motherboard
Environmentally Friendly: Yes
Environmental Certification: RoHS
