Dataram 8GB DDR4 SDRAM Memory Module - 8 GB (1 x 8 GB) - DDR4-2933/PC4-23466 DDR4 SDRAM - CL21 - 1.20 V - ECC - Registered - 288-pin - DIMM DTM68147-S

Dataram 8GB DDR4 SDRAM Memory Module - 8 GB (1 x 8 GB) - DDR4-2933/PC4-23466 DDR4 SDRAM - CL21 - 1.20 V - ECC - Registered - 288-pin - DIMM

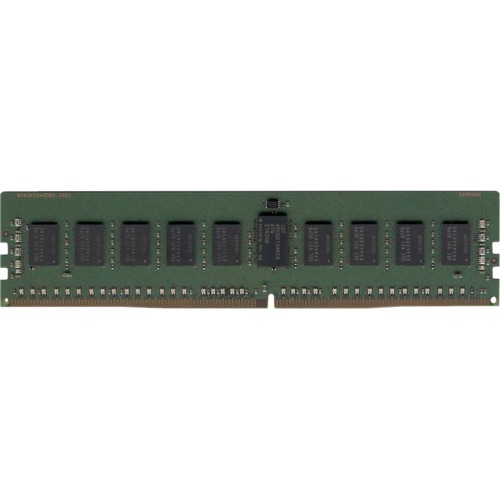

DTM68147-S is a registered 1Gx72 memory module, which conforms to JEDEC''s PC4-2933Y standard. The assembly is Single-Rank with a rank containing: nine Samsung 1Gbx8 DDR4- 2933Y SDRAMs. One 4K-bit EEPROM is used for Serial Presence Detect and a combination register/PLL, with Address and Command Parity is also used. Both output driver strength and input termination impedance are programmable to maintain signal integrity on the I/O signals in a Fly-by topology. A thermal sensor accurately monitors the DIMM module and can prevent exceeding the maximum operating temperature of 95C.

Technical Specifications:
Memory Size: 8 GB
Memory Technology: DDR4 SDRAM
Memory Voltage: 1.20 V
Number of Modules: 1 x 8GB
Memory Speed: 2933 MHz
Memory Standard: DDR4-2933/PC4-23466
Error Checking: ECC
Signal Processing: Registered
CAS Latency: CL21
Number of Pins: 288-pin
Form Factor: DIMM
Thickness: 156.7 mil
Width: 1.2"
Length: 5.3"
Environmentally Friendly: Yes
Environmental Certification: RoHS, REACH, WEEE
