Dataram 8GB DDR4 SDRAM Memory Module - 8 GB (1 x 8 GB) - DDR4 SDRAM - 2666 MHz DDR4-2666/PC4-2666 - 1.20 V - ECC - Registered - 288-pin - DIMM DVM26R1T8/8G

Dataram 8GB DDR4 SDRAM Memory Module - 8 GB (1 x 8 GB) - DDR4 SDRAM - 2666 MHz DDR4-2666/PC4-2666 - 1.20 V - ECC - Registered - 288-pin - DIMM

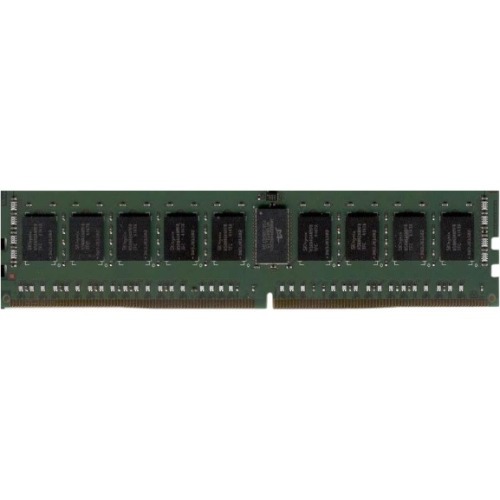

DVM26R1T8/8G is a registered 1Gx72 memory module, which conforms to JEDEC''s DDR4-2666, PC4-2666 standard. The assembly is Single-Rank, comprised of nine 1Gbx8 DDR4-2666 SDRAMs.One EEPROM is used for Serial Presence Detect and a combination register/PLL, with Address and Command Parity, is also used.Both output driver strength and input termination impedance are programmable to maintain signal integrity on the I/O signals in a Fly-by topology.A thermal sensor accurately monitors the DIMM module and can prevent exceeding the maximum operating temperature of 95C.

Technical Specifications:
Memory Size: 8 GB
Memory Technology: DDR4 SDRAM
Memory Voltage: 1.20 V
Number of Modules: 1 x 8GB
Memory Speed: 2666 MHz
Memory Standard: DDR4-2666/PC4-2666
Error Checking: ECC
Signal Processing: Registered
CAS Latency: CL19
Number of Pins: 288-pin
Form Factor: DIMM
Width: 1.2"
Length: 5.3"
