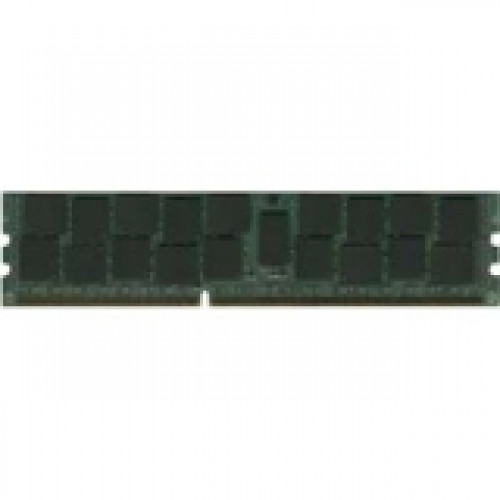

Dataram 8GB DDR3 SDRAM Memory Module - For Server - 8 GB (1 x 8 GB) - DDR3-1600/PC3-12800 DDR3 SDRAM - 1.50 V - ECC - Registered - 240-pin - DIMM - RoHS, TAA Compliance DRIX1600R/8GB

Dataram 8GB DDR3 SDRAM Memory Module - For Server - 8 GB (1 x 8 GB) - DDR3-1600/PC3-12800 DDR3 SDRAM - 1.50 V - ECC - Registered - 240-pin - DIMM - RoHS, TAA Compliance

Each DRIX1600R upgrade consists of a single DDR3- 1600 Registered ECC DIMM that conforms to JEDEC''s DDR3, PC3-12800 standard. One 2K-bit EEPROM is used for Serial Presence Detect and a combination register/PLL with Address and Command Parity is also used. A thermal sensor accurately monitors the DIMM module and can prevent exceeding the maximum operating temperature of 95C.

Technical Specifications:
Memory Size: 8 GB
Memory Technology: DDR3 SDRAM
Memory Voltage: 1.50 V
Number of Modules: 1 x 8GB
Memory Speed: 1600 MHz
Memory Standard: DDR3-1600/PC3-12800
Error Checking: ECC
Signal Processing: Registered
Device Supported: Server
Number of Pins: 240-pin
Form Factor: DIMM
Width: 1.2"
Length: 5.3"
Compatibility:

IBM System x iDataPlex:

dx360 M4, X3500 M4, X3550 M4, X3650 M4
Environmentally Friendly: Yes
Environmental Certification: RoHS
