Dataram 64GB DDR4 SDRAM Memory Module - 64 GB (1 x 64 GB) - DDR4 SDRAM - 2666 MHz DDR4-2666/PC4-21300 - 1.20 V - ECC - Registered - 288-pin - LRDIMM DTM68306-H

Dataram 64GB DDR4 SDRAM Memory Module - 64 GB (1 x 64 GB) - DDR4 SDRAM - 2666 MHz DDR4-2666/PC4-21300 - 1.20 V - ECC - Registered - 288-pin - LRDIMM DTM68306-H
Brand: Dataram
Part Number: DTM68306-H
MSRP: $709.99
Availability: 10 or more
Condition: New
Price: $591.14
Qty:     - OR -   Add to Wish List
Add to Compare

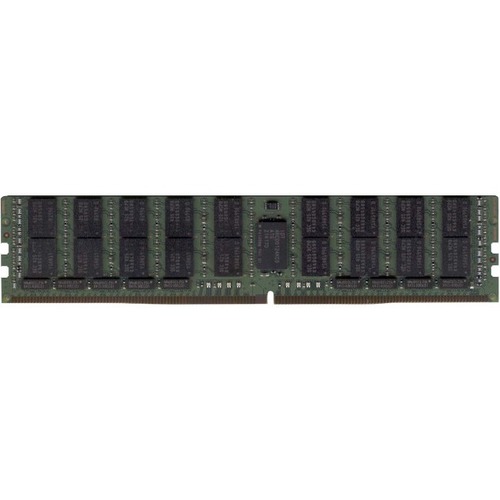

Dataram 64GB DDR4 SDRAM Memory Module - 64 GB (1 x 64 GB) - DDR4 SDRAM - 2666 MHz DDR4-2666/PC4-21300 - 1.20 V - ECC - Registered - 288-pin - LRDIMM

DTM68306-H is a load reduced 8Gx72 memory module, which conforms to JEDEC''s DDR4-2666, PC4-2666 standard. The assembly is Quad-Rank containing - thirty-six SKHynix 4Gbx4 DDR4-2666 DDP SDRAMs. One 4K-bit EEPROM is used for Serial Presence Detect and a Registering Clock Driver, with Address and Command Parity, is also used as well as data buffers to reduce the overall loading on the data bus.Both output driver strength and input termination impedance are programmable to maintain signal integrity on the I/O signals in a Fly-by topology. A thermal sensor accurately monitors the DIMM module and can prevent exceeding the maximum operating temperature of 95C.


Technical Specifications:
Memory Size: 64 GB
Memory Technology: DDR4 SDRAM
Memory Voltage: 1.20 V
Number of Modules: 1 x 64GB
Memory Speed: 2666 MHz
Memory Standard: DDR4-2666/PC4-21300
Error Checking: ECC
Signal Processing: Registered
CAS Latency: CL19
Device Supported: Server
Number of Pins: 288-pin
Form Factor: LRDIMM
Thickness: 156.7 mil
Width: 1.2"
Length: 5.3"
Environmentally Friendly: Yes
Environmental Certification: RoHS
Country of Origin: United States
