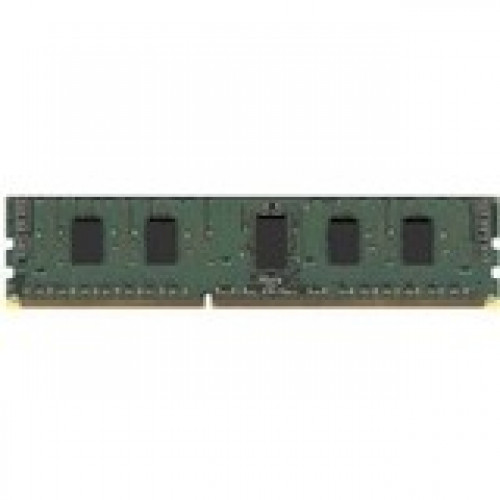

Dataram 4GB DDR3 SDRAM Memory Module - 4 GB (1 x 4 GB) - DDR3-1600/PC3L-12800 DDR3 SDRAM - CL11 - 1.35 V - ECC - Registered - 240-pin - DIMM DTM64429C

Dataram 4GB DDR3 SDRAM Memory Module - 4 GB (1 x 4 GB) - DDR3-1600/PC3L-12800 DDR3 SDRAM - CL11 - 1.35 V - ECC - Registered - 240-pin - DIMM

DTM64429C is a registered 512Mx72 memory module, which conforms to JEDEC''s DDR3L-1600, PC3L-12800 standard. The assembly is a SingleRank, containing nine 512Mx8 DDR3 Samsung SDRAMs. One 2K-bit EEPROM is used for Serial Presence Detect and a combination register/PLL, with Address and Command Parity, is also used. Both output driver strength and input termination impedance are programmable to maintain signal integrity on the I/O signals in a Fly-by topology. A thermal sensor accurately monitors the DIMM module and can prevent exceeding the maximum operating temperature of 95C.

Technical Specifications:
Memory Size: 4 GB
Memory Technology: DDR3 SDRAM
Memory Voltage: 1.35 V
Number of Modules: 1 x 4GB
Memory Speed: 1600 MHz
Memory Standard: DDR3-1600/PC3L-12800
Error Checking: ECC
Signal Processing: Registered
CAS Latency: CL11
Device Supported: Server
Number of Pins: 240-pin
Form Factor: DIMM
Thickness: 155.1 mil
Width: 1.2"
Length: 5.3"
Compatibility: Supermicro X9DA7 Motherboard
Environmentally Friendly: Yes
Environmental Certification: RoHS
