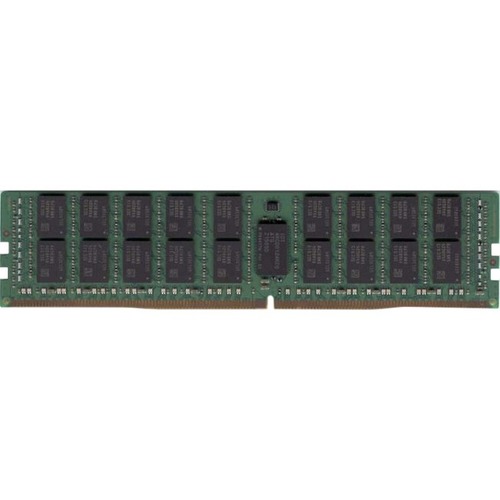

Dataram 32GB DDR4 SDRAM Memory Module - 32 GB (1 x 32 GB) - DDR4 SDRAM - 2400 MHz DDR4-2400/PC4-19200 - 1.20 V - ECC - Registered - 288-pin - DIMM DTM68116-S

Dataram 32GB DDR4 SDRAM Memory Module - 32 GB (1 x 32 GB) - DDR4 SDRAM - 2400 MHz DDR4-2400/PC4-19200 - 1.20 V - ECC - Registered - 288-pin - DIMM

DTM68116-S is a registered 4Gx72 memory module, which conforms to JEDEC''s PC4-2400 standard. The assembly is Dual-Rank with each rank containing of eighteen Samsung 2Gbx4 DDR4-2400 SDRAMs. One 4K-bit EEPROM is used for Serial Presence Detect and a combination register/PLL, with Address and Command Parity, is also used. Both output driver strength and input termination impedance are programmable to maintain signal integrity on the I/O signals in a Fly-by topology. A thermal sensor accurately monitors the DIMM module and can prevent exceeding the maximum operating temperature of 95C.

Technical Specifications:
Memory Size: 32 GB
Memory Technology: DDR4 SDRAM
Memory Voltage: 1.20 V
Number of Modules: 1 x 32GB
Memory Speed: 2400 MHz
Memory Standard: DDR4-2400/PC4-19200
Error Checking: ECC
Signal Processing: Registered
CAS Latency: CL17
Device Supported: Server
Number of Pins: 288-pin
Form Factor: DIMM
Thickness: 156.7 mil
Width: 1.2"
Length: 5.3"
Environmentally Friendly: Yes
Environmental Certification: RoHS
Country of Origin: United States
