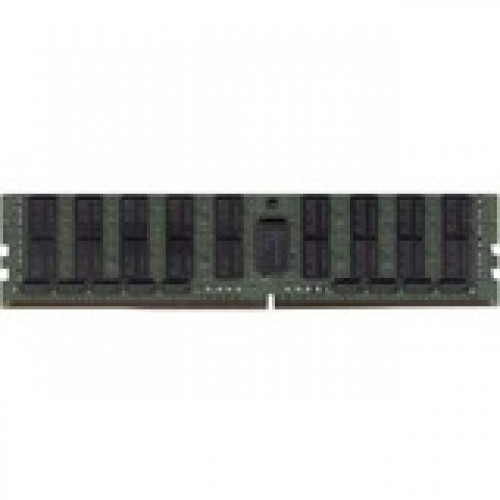

Dataram 128GB DDR4 SDRAM Memory Module - For Server, Desktop PC - 128 GB (1 x 128 GB) - DDR4-2666/PC4-21300 DDR4 SDRAM - CL22 - 1.20 V - ECC - 288-pin - LRDIMM DVM26L8T4/128G

Dataram 128GB DDR4 SDRAM Memory Module - For Server, Desktop PC - 128 GB (1 x 128 GB) - DDR4-2666/PC4-21300 DDR4 SDRAM - CL22 - 1.20 V - ECC - 288-pin - LRDIMM

DVM26L8T4/128G is a load-reduced 16Gx72 memory module, which conforms to JEDEC''s DDR4-2666, PC4-2666 standard. The assembly is Eight-Rank. Each rank is comprised of nine 8Gbx4 DDR4-2666 4H TSV SDRAMs. One EEPROM is used for Serial Presence Detect and a Registering Clock Driver, with Address and Command Parity, is also used as well as data buffers to reduce the overall loading on the data bus. Both output driver strength and input termination impedance are programmable to maintain signal integrity on the I/O signals in a Fly-by topology. A thermal sensor accurately monitors the DIMM module and can prevent exceeding the maximum operating temperature of 95C.

Technical Specifications:
Memory Size: 128 GB
Memory Technology: DDR4 SDRAM
Memory Voltage: 1.20 V
Number of Modules: 1 x 128GB
Memory Speed: 2666 MHz
Memory Standard: DDR4-2666/PC4-21300
Error Checking: ECC
CAS Latency: CL22
Device Supported: Server, Desktop PC
Number of Pins: 288-pin
Form Factor: LRDIMM
Width: 1.2"
Length: 5.3"
