Connectpro HDMX7D Digital Fiber Expander - 1 Computer(s) - 1 Local User(s) - 1920 x 1200 Maximum Video Resolution - 1 x Network (RJ-45) - 4 x USB - 2 x DVI - 120 V AC, 230 V AC Input Voltage - TAA Compliant HDMX7D-RX

Connectpro HDMX7D Digital Fiber Expander - 1 Computer(s) - 1 Local User(s) - 1920 x 1200 Maximum Video Resolution - 1 x Network (RJ-45) - 4 x USB - 2 x DVI - 120 V AC, 230 V AC Input Voltage - TAA Compliant HDMX7D-RX
Brand: Connectpro
Part Number: HDMX7D-RX
MSRP: $561.99
Availability: 10 or more
Condition: New
Price: $467.61
Qty:     - OR -   Add to Wish List
Add to Compare
Connectpro HDMX7D Digital Fiber Expander - 1 Computer(s) - 1 Local User(s) - 1920 x 1200 Maximum Video Resolution - 1 x Network (RJ-45) - 4 x USB - 2 x DVI - 120 V AC, 230 V AC Input Voltage - TAA Compliant

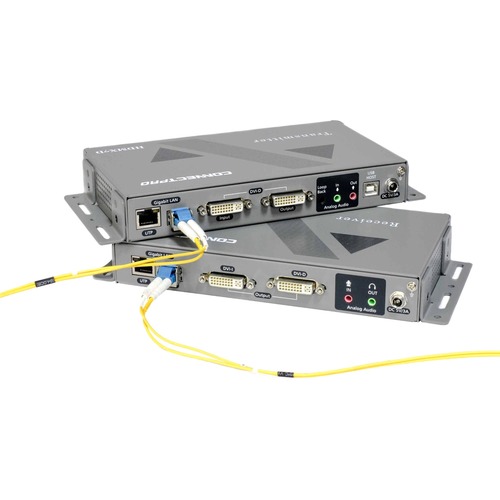

The HDMX7/HDMX7D Fiber series extends HDMI/DVI, USB 2.0, 2-way analog audio, RS-232, and IR over an optical fiber network. The supported maximum resolution is 1920×1200@60Hz over HDMI and even DVI. With optional Nano-Coating, making the HDMX7/HDMX7D the most versatile and durable unit for all uses: land, air, and sea. This helps the unit fall into the certification of IEC 60945 standards. Multicasting support means multiple encoders and decoders Senders and multiple Receivers can simultaneously connect to create an AV matrix. HDMI transmission allows 3D video and 7.1 channel audio pass-through. USB 2.0/1.1 pass-through is also supported. The decoder has four USB ports with up to 500mA current draw per port, providing access to keyboards, mice, and other USB devices. 2-way analog audio pass-through is ideal for KVM and external speaker installation. The 2-way IR and RS-232 serial port can be used for controlling video sources and displays/TVs from the remote site. The devices are HDCP 2.0 compliant. A built-in web interface makes configuration and operation easy and intuitive.


Technical Specifications:
Connectivity Technology: Wired
Number of Computers Supported: 1
Number of Local Users Supported: 1
Maximum Video Resolution: 1920 x 1200
Network (RJ-45): Yes
USB: Yes
DVI: Yes
Number of Network (RJ-45) Ports: 1
Number of USB Ports: 4
Number of DVI Ports: 2
Input Voltage: 120 V AC, 240 V AC
Input Voltage Range: 100V AC to 240V AC
Receiver Height: 1.26"
Receiver Width: 7.68"
Receiver Depth: 4.49"
Receiver Weight (Approximate): 15.17 oz
Package Contents:
    HDMX7D Digital Fiber Expander, Power Adapter, Cables, Starter Kit

Country of Origin: Taiwan
TAA Compliant: Yes
