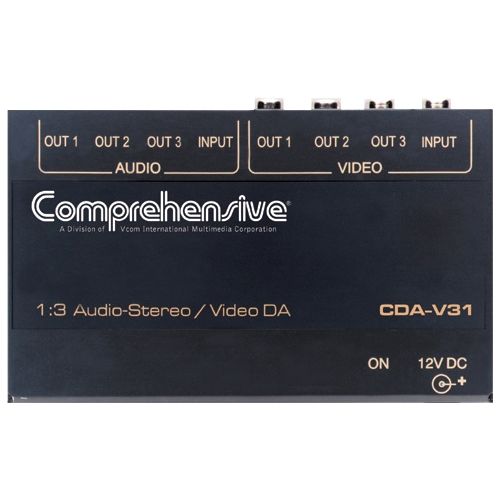

Comprehensive CDA-V31 Video Splitter - 1 x 3Composite Video In - Composite Video Out CDA-V31

Comprehensive CDA-V31 Video Splitter - 1 x 3Composite Video In - Composite Video Out

The CDA-V31 is a high performance 1x3 distribution amplifier for composite video and audio stereo signals. Video bandwidth of 320MHz ensures that the CDA-V31 remains transparent even in the most critical applications. The CDA-V31 accepts a single input and distributes it to three identical outputs using RCA connectors for video, and stereo 3.5mm phone connectors for audio. 3 units can be rack mounted side-by-side in a 1U rack space with the optional RK-3T rack adapter. A 12V power supply is provided, but the optional VA-50P can power up to six devices requiring 12VDC.

Technical Specifications:
Number of Input Devices Supported: 1
Device Supported: Computer
Number of Displays Supported: 3
Composite Video In: Yes
Composite Video Out: Yes
Audio Line In: Yes
Audio Line Out: Yes
Form Factor: Rack-mountable
Height: 1"
Width: 4.7"
Depth: 3"
Weight (Approximate): 9.92 oz
Package Contents: CDA-V31 Video Splitter, Power Supply
Country of Origin: Israel
