Comnet Video Transmitter/Data Transceiver (1310/1550 nm) - Optical Fiber - TAA Compliance FVT412S1

ComNet Video Transmitter/Data Transceiver (1310/1550 nm) - Optical Fiber - TAA Compliance

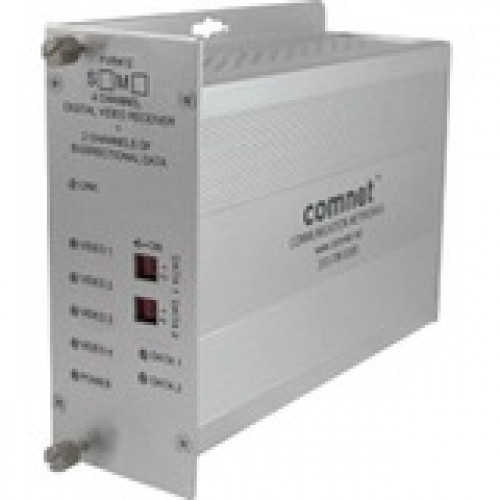

The ComNet FVT/FVR412 Series transmits four channels of video utilizing state of the art digital encoding and decoding for high-quality video transmission, along with two channels of bi-directional data and one bi-directional contact closure over one single mode or multimode optical fiber. This equipment is environmentally hardened and suitable for use in unconditioned roadside or out-of plant installations. The FVT/FVR412 is compatible with NTSC, PAL and SECAM video transmission protocols and supports bi-directional RS232, 422 and 485-2/4W data. Features for FVT/FVR412 Series Supports RS232, RS422, and 2- or 4-wire RS485 One bi-directional contact closure Robust design ensures extremely high reliability in unconditioned out-of-plant environments Status indicating LEDs provide rapid indication of critical operating parameters. Five year warranty Voltage transient protection on all power and signal input/output lines provides protection from power surges and other voltage transient events. Compatible with NTSC, PAL, or SECAM Video Standards 10-bit digitally encoded short-haul video transmission meets the requirements of the EIA RS-250C standard. Tested and certified by an independent laboratory for full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/low-line voltage conditions and transient voltage protection) of NEMA TS-1/ TS-2 and the Caltrans Specification for Traffic Signal Control Equipment. Standard ComFit models are hot-swappable. ComFit standard form factor is designed for wall, surface, rack, or DIN rail mount installations (using optional card cage or DIN mounting bracket).

Technical Specifications:
Connectivity Technology: Wired
Media Type Supported: Optical Fiber
Fiber Mode Supported: Single-mode
Fiber Optic Wavelength: 1310 nm, 1550 nm
Maximum Distance Supported: 42.87 Mile
Form Factor: Wall Mountable, Rack-mountable, Surface Mountable, Rail-mountable
Height: 5.3"
Width: 3.3"
Depth: 6.1"
Package Contents:

Video Transmitter/Data Transceiver (1310/1550 nm), DC Plug-in Power Supply, 90-264 VAC, 50-60 Hz

Environmentally Friendly: Yes
Environmental Certification: RoHS, WEEE
Country of Origin: United States
