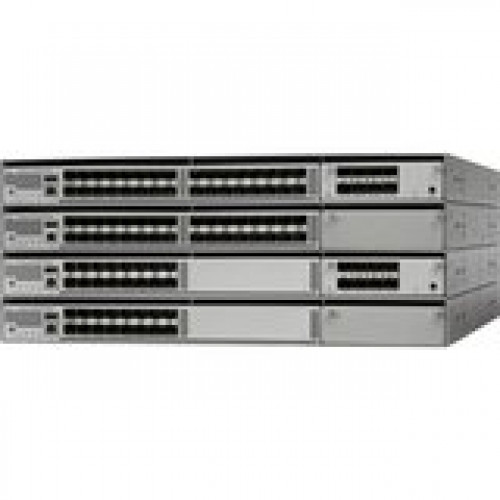

Cisco Catalyst 4500-X Series provides scalable, fixed-campus aggregation solutions in space-constrained environments. The solution provides flexibility to build desired port density through two versions of base switches along with optional uplink module. Both the 32- and 16-port versions can be configured with optional network modules and offer similar features. The Small Form-Factor Pluggable Plus (SFP+) interface supports both 10 Gigabit Ethernet and 1 Gigabit Ethernet ports, allowing customers to use their investment in 1 Gigabit Ethernet SFP and upgrade to 10 Gigabit Ethernet when business demands change, without having to do a comprehensive upgrade of the existing deployment. The uplink module is hot swappable.
| Product Type | Ethernet Switch |
| Form Factor | Rack-mountable, Desktop |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | 10 Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T |
| Token Ring Port | No |
| LRE Port | No |
| Uplink Port | Yes |
| Bypass | No |
| Modular | Yes |
| Management Port | Yes |
| USB | Yes |
| Number of Total Expansion Slots | 32 |
| Expansion Slot Type | SFP, SFP+ |
| Shared SFP Slot | Yes |
| Layer Supported | 2 |
| Manageable | Yes |
| Management |
|
| Standard Memory | 4 GB |
| Memory Technology | DDR2 SDRAM |
| Flash Memory | 2 GB |
| PoE (RJ-45) Port | No |
| Input Voltage | 110 V AC, 220 V AC |
| Power Source | Power Supply |
| Redundant Power Supply | Yes |
| Limited Warranty | Lifetime |
| Green Compliant | Yes |
| Green Compliance Certificate/Authority | RoHS |
| Number of SFP+ Slots | 32 |
| Stack Port | No |
| Certifications & Standards |
EMI and EMC Compliance:
Safety:
|
| Memory Card Supported | SD |
| MTBF | 199720 Hour |
