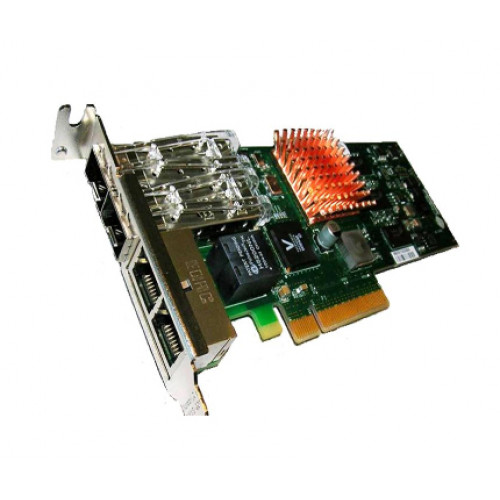

CHELSIO Quad-port 1gbe/10gbe Ethernet Unified Wire Adapter W/transceiver T422-CR

Detail overview

Chelsio T422-cr Quad-port 1gbe/10gbe Ethernet Unified Wire Adapter W/transceiver.

Specifications:

Host Interface:
- Pci Express Gen2 X8
- Msi-x, Msi And Support For Legacy Pin Interrupts

High Performance Rdma:
- Low Latency And Line Rate Bandwidth
- Enhanced Rdma Primitives
- Iwarp Support On Linux Ofed
- Microsoft Network Direct Support

Udp & Multicast Offload:
- Udp Sockets Api
- Low User-to-user Latency
- Multicast Replication On Ingress Or Egress

Virtualization:
- Pci-sig Sr-iov
- 128 Virtual And 8 Physical Functions
- 144-port Virtual Switch
- Evb, Vepa, Flex10, Vntag
- 336 Virtual Mac Addresses

Fcoe:
- Full Hba Fcoe (initiator Or Target)
- Open-fcoe Offload (initiator)
- Crc32 Offload Generation & Verification
- Ingress & Egress Acl (access Control List)

Iscsi Acceleration:
- Full Iscsi Initiator And Target Mode Stack
- Crc32 Offload Generation & Verification
- Iscsi Proxy Switching Based On Scsi Cdb
- Full Hba Offload

Tcp/ip Full Offload:
- Full Tcp Implementation Including Ipv4 & Ipv6
- Microsoft Chimney Support
- Extensive Rfc Compliance, Fully Featured Stack
- Full Tcp Proxy Between Any Set Of Connections
- Vlan Support Up To 4096 Different Vlan Ids
- Load Balancing And Fail-over Capabilities

Stateless Offloads:
- Tcp/udp Checksum Offload For Ipv4 & Ipv6
- Tso, Lro, Lso, And Gso For Ipv4 & Ipv6
- Vlan Filtering, Insertion & Extraction
- Line Rate Packet Filtering And Attack Protection
- Fine Granularity Time Stamping (down To 4ns)
- Ethernet Routing (packet Header Rewrite)
- Packet Tracing And Packet Sniffing

Ethernet:
- Ieee 802.3ae (10 Gbe)
- Ieee 802.3z (1 Gbe) Compliant
- Ieee 802.ip Priority
- Ieee 802.iq Vlan Tagging
- Ieee 802.1qbg Evb/vepa
- Ieee 802.1qbh Vntag
- Ieee 802.3x Flow Control
- Ieee 802.3ad Load-balancing And Failover
- Ether Ii And 802.3 Encapsulated Frames
- Multiple Mac Addresses Per Interface
- Jumbo Frames Up To 9.6kbytes

Dimensions Without Bracket:
- 6.6 In. X 2.71 In. Or 16.76 Cm X 6.88cm

Physical And Environmental:
- Operating Temp: 0 To 55ºc Or 32 To 131ºf
- Operating Humidity: 5 To 95%
- Typical Power Consumption: 14w
