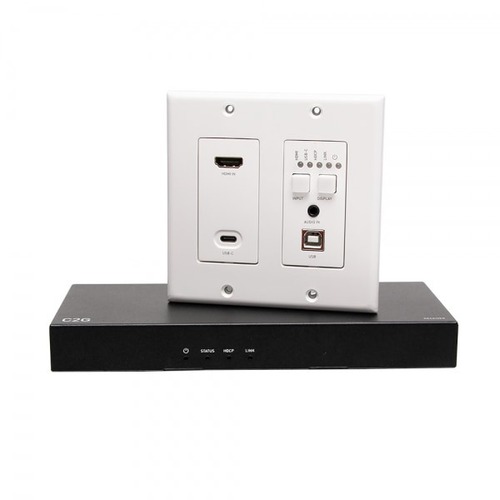

C2g Video Extender Transmitter/Receiver - 1 Input Device - 1 Output Device - 230 ft Range - 2 x Network (RJ-45) - 7 x USB - 1 x HDMI In - 1 x HDMI Out - 4K UHD - Wall Plate 30011

C2G Video Extender Transmitter/Receiver - 1 Input Device - 1 Output Device - 230 ft Range - 2 x Network (RJ-45) - 7 x USB - 1 x HDMI In - 1 x HDMI Out - 4K UHD - Wall Plate

The HDMI HDBaseT + USB-C, 3.5mm, and USB-A to B over Cat Extender Dual Gang Wall Plate Transmitter to Box Receiver - 4K 60Hz allows a 4K HDMI source to be extended up to 130ft to a 4K display using a single Cat6a Ethernet cable. This is an ideal solution where USB must be extended alongside HDMI video and audio to interactive whiteboards and displays in conference rooms, classrooms, lecture halls, and many other installation needs that are far beyond the length limitations of standard HDMI cabling.The transmitter extends HDMI, USB-C, and high speed USB 2.0 signals over a single Cat5e, Cat6 or Cat6a network patch cable. Extend 4K HDMI or USB-C up to 115 feet and 1080p up to 230 feet using a Cat5e or Cat6 cable. For longer 4K distances, extend 4K HDMI or USB-C up to 130 feet using a Cat6a cable.This HDMI HDBaseT Extender is HDCP 2.2 compliant, making sure that the connection between the source and display is secure. Automatic switching is supported by the transmitter, connecting to the last active source. One-way analog audio pass through is supported from the transmitter to the receiver. High speed USB 2.0 pass through is supported over HDBaseT up to 230ft for KVM control of devices such as USB cameras, keyboards, mice, etc. With PoH support, the receiver can send power to the wall plate transmitter, so no additional power adapter is required, allowing for greater flexibility in installations. Advanced users can control the transmitter via API command through the Micro USB port on transmitter or the RS232 port on receiver.Note: Ensure a solid reliable connection between the 4K HDMI HDBaseT Extender and critical equipment. We suggest using HDMI Cables with gripping connectors that provide greater port retention than standard HDMI connectors.

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Technical Specifications:
Connectivity Technology: Wired
Number of Input Devices Supported: 1
Number of Output Devices Supported: 1
Maximum Operating Distance: 230 ft
Graphics Modes: 4K UHD
Network (RJ-45): Yes
HDMI In: Yes
HDMI Out: Yes
USB: Yes
Number of Network (RJ-45) Ports: 2
Number of USB Ports: 7
Number of HDMI Inputs: 1
Number of HDMI Outputs: 1
Transmitter Height: 1.51"
Transmitter Width: 3.50"
Transmitter Depth: 4.16"
Receiver Height: 0.98"
Receiver Width: 8.27"
Receiver Depth: 3.55"
Form Factor: Wall Plate
Transmitter Weight (Approximate): 10.58 oz
Receiver Weight (Approximate): 1.01 lb
Country of Origin: China
