C2g TruLink VGA+3.5mm Audio over Cat5 Box Transmitter - 1 Input Device - 2 Output Device - 300 ft Range - 2 x Network (RJ-45) - 1 x VGA In - WUXGA - 1920 x 1200 - Twisted Pair - Category 6 - TAA Compliant - RoHS, TAA Compliance 29367

C2g TruLink VGA+3.5mm Audio over Cat5 Box Transmitter - 1 Input Device - 2 Output Device - 300 ft Range - 2 x Network (RJ-45) - 1 x VGA In - WUXGA - 1920 x 1200 - Twisted Pair - Category 6 - TAA Compliant - RoHS, TAA Compliance 29367
Brand: C2g
Part Number: 29367
MSRP: $198.99
Availability: 10 or more
Condition: New
Price: $165.26
Qty:     - OR -   Add to Wish List
Add to Compare

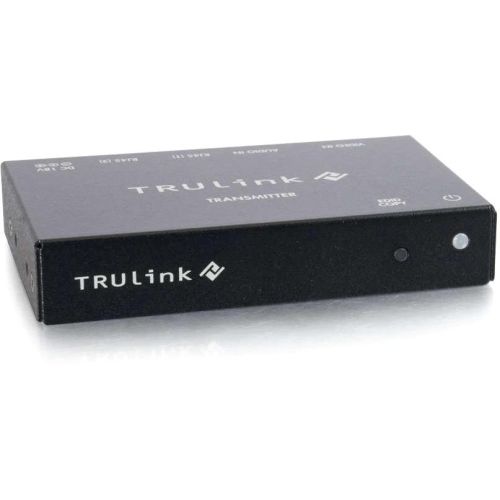

C2G TruLink VGA+3.5mm Audio over Cat5 Box Transmitter - 1 Input Device - 2 Output Device - 300 ft Range - 2 x Network (RJ-45) - 1 x VGA In - WUXGA - 1920 x 1200 - Twisted Pair - Category 6 - TAA Compliant - RoHS, TAA Compliance

The VGA+3.5mm Audio over UTP Box Transmitter, when used in conjunction with a receiver (29366 or 29368 - NOT INCLUDED), allows you to extend a VGA signal over two Cat5/Cat5e/Cat6 unshielded twisted pair cables up to 300ft without signal degradation at 1920x1200 or 1920x1080 resolutions. This solution is compatible with any operating system and is truly plug and play with no drivers or software required. The transmitter and receiver come in either wall plate or box form factors and are inter-operable allowing you to choose the form factors that are best suited for the application. In addition, this solution utilizes phantom power providing you the flexibility to power at either the transmitter or receiver end.The EDID copy feature ensures compatibility with any monitor. Built-In power surge protection and high ground loop immunity ensure high performance signal extension.


Technical Specifications:
Connectivity Technology: Wired
Number of Input Devices Supported: 1
Number of Output Devices Supported: 2
Maximum Operating Distance: 300 ft
Graphics Modes: WUXGA
Maximum Video Resolution: 1920 x 1200
Network (RJ-45): Yes
VGA In: Yes
Number of Network (RJ-45) Ports: 2
Number of VGA Inputs: 1
Media Type Supported: Twisted Pair
Twisted Pair Cable Standard: Category 6
Product Color: Black
Transmitter Height: 0.79"
Transmitter Width: 4.33"
Transmitter Depth: 2.76"
Transmitter Weight (Approximate): 1.87 lb
Certifications & Standards:

TAA


Environmentally Friendly: Yes
Environmental Certification: RoHS
TAA Compliant: Yes
