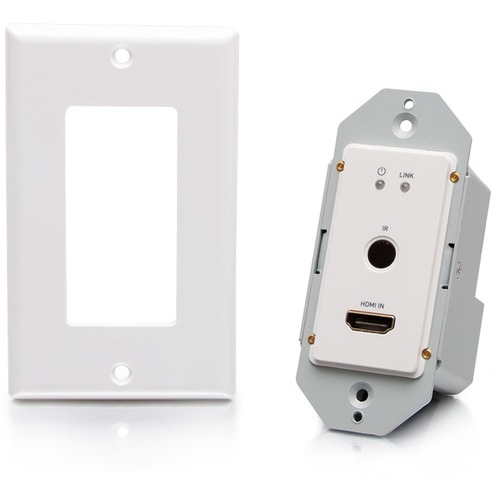

C2g 4K HDMI HDBaseT + RS232 and IR Single Gang Wall Plate Transmitter - 1 Input Device - 230 ft Range - 1 x Network (RJ-45) - 1 x HDMI In - 4K UHD - Twisted Pair - Category 7 - Wall Plate 30021

C2G 4K HDMI HDBaseT + RS232 and IR Single Gang Wall Plate Transmitter - 1 Input Device - 230 ft Range - 1 x Network (RJ-45) - 1 x HDMI In - 4K UHD - Twisted Pair - Category 7 - Wall Plate

The HDMI HDBaseT + RS232 and IR over Cat Extender Single Gang Wall Plate Transmitter - 4K 60Hz allows a 4K HDMI source to be extended up to 130ft to a 4K display using a single Cat6a Ethernet cable. This transmitter is an ideal part of an HDBaseT solution where HDMI video and audio in conference rooms, classrooms, lecture halls, and many other installation needs are far beyond the length limitations of standard HDMI cabling. This transmitter extends HDMI over a single Cat5e, Cat6, or Cat6a network patch cable. Extend 4K HDMI up to 115 feet and 1080p up to 230 feet using a Cat5e or Cat6 cable. For longer 4K distances, extend 4K HDMI up to 130 feet using a Cat6a cable. This HDMI HDBaseT transmitter is HDCP 2.2 compliant, ensuring that the source and display connection is secure. Multi-channel audio formats are supported, including PCM 2.0/5.1/7.1, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, and DTS:X. With one-way Power over Cable (PoC) support, the transmitter gets its power from the receiver, so no additional power adapter is required, allowing for greater installation flexibility. Advanced users can control RS232 pass-through.

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Technical Specifications:
Connectivity Technology: Wired
Number of Input Devices Supported: 1
Maximum Operating Distance: 230 ft
Graphics Modes: 4K UHD
Network (RJ-45): Yes
HDMI In: Yes
Number of Network (RJ-45) Ports: 1
Number of HDMI Inputs: 1
Media Type Supported: Twisted Pair
Twisted Pair Cable Standard: Category 7
Product Color: White
Transmitter Height: 4.16"
Transmitter Width: 1.77"
Transmitter Depth: 1.78"
Form Factor: Wall Plate
Transmitter Weight (Approximate): 6.35 oz
Country of Origin: China
