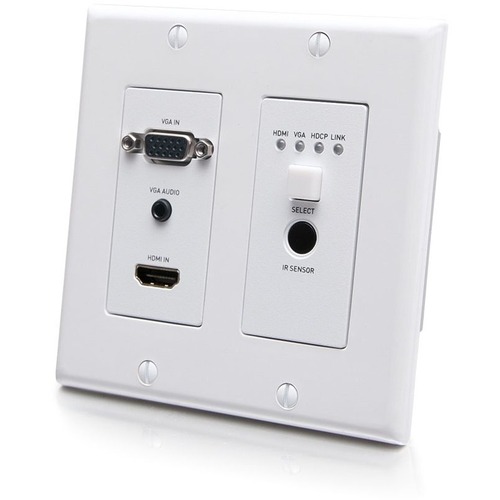

C2g 1 HDMI+VGA Wall Plate TX - 2 Input Device - 230 ft Range - 1 x Network (RJ-45) - 1 x HDMI In - 1 x VGA In - 4K UHD - Twisted Pair - Category 6a - Wall Plate 30017

C2G 1 HDMI+VGA Wall Plate TX - 2 Input Device - 230 ft Range - 1 x Network (RJ-45) - 1 x HDMI In - 1 x VGA In - 4K UHD - Twisted Pair - Category 6a - Wall Plate

The HDMI HDBaseT + VGA, 3.5mm, RS232, and IR over Cat Extender Dual Gang Wall Plate Transmitter - 4K 60Hz allows 4K HDMI or VGA sources to be extended using a single Cat6a Ethernet cable. This is an ideal solution where video and audio needs to be extended to displays in conference rooms, classrooms, lecture halls, and many other installation needs that are far beyond the length limitations of standard cabling. This transmitter extends HDMI and VGA signals over a single network patch cable. Extend 4K HDMI up to 115 feet and 1080p VGA up to 230 feet using a Cat5e or Cat6 cable. For longer 4K distances, extend 4K HDMI or up to 130 feet using a Cat6a cable. This HDMI HDBaseT transmitter is HDCP 2.2 compliant, making sure that the connection from the source is secure. The transmitter supports PoC PD to receive power from an HDBaseT receiver with PSE module. It can also be powered by local 12V power supply and share power with the receiver via the 3-pin phoenix power out connector, so no additional power adapter is required, allowing for greater flexibility in installations. Advanced users can control IR and RS232 pass through.

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Technical Specifications:
Connectivity Technology: Wired
Number of Input Devices Supported: 2
Maximum Operating Distance: 230 ft
Graphics Modes: 4K UHD
Network (RJ-45): Yes
HDMI In: Yes
VGA In: Yes
Number of Network (RJ-45) Ports: 1
Number of HDMI Inputs: 1
Number of VGA Inputs: 1
Media Type Supported: Twisted Pair
Twisted Pair Cable Standard: Category 6a
Product Color: Black
Transmitter Height: 1.51"
Transmitter Width: 3.50"
Transmitter Depth: 4.16"
Form Factor: Wall Plate
Transmitter Weight (Approximate): 10.58 oz
Country of Origin: China
