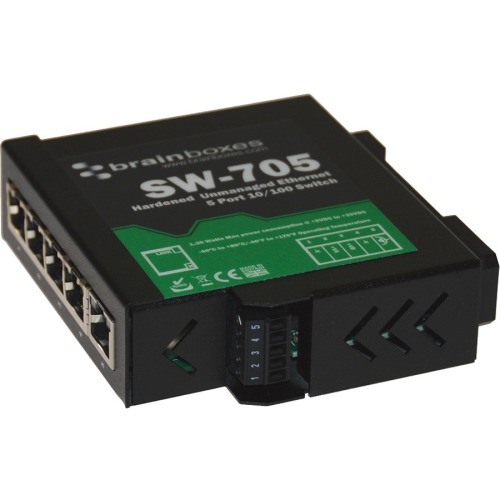

Brainboxes Industrial Hardened Ethernet 5 Port Switch DIN Rail Mountable - 5 Ports - TAA Compliant - 2 Layer Supported - Twisted Pair - DIN Rail Mountable - Lifetime Limited Warranty SW-705

Brainboxes Industrial Hardened Ethernet 5 Port Switch DIN Rail Mountable - 5 Ports - TAA Compliant - 2 Layer Supported - Twisted Pair - DIN Rail Mountable - Lifetime Limited Warranty SW-705
Brand: Brainboxes
Part Number: SW-705
MSRP: $115.99
Availability: 10 or more
Condition: New
Price: $95.99
Qty:     - OR -   Add to Wish List
Add to Compare
Brainboxes Industrial Hardened Ethernet 5 Port Switch DIN Rail Mountable - 5 Ports - TAA Compliant - 2 Layer Supported - Twisted Pair - DIN Rail Mountable - Lifetime Limited Warranty

Industrial Compact Ethernet 5 Port unmanaged switch. Galvanically Isolated Ethernet Ports capable of 10/100 Mbps. Industrial temperature range of -40°C to +80°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Only 22.5mm wide and 94mm deep. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications.


Technical Specifications:
Total Number of Network Ports: 5
Modular: No
Port/Expansion Slot Details: 5 x Fast Ethernet Network
Media Type Supported: Twisted Pair
Ethernet Technology: Fast Ethernet
Network Technology: 10/100Base-T
Layer Supported: 2
Manageable: No
Power Source: AC Adapter, USB
Redundant Power Supply Supported: No
Form Factor: DIN Rail Mountable
Height: 1.1"
Width: 3.9"
Depth: 3.7"
Weight (Approximate): 9.52 oz
Package Contents:
    Industrial Hardened Ethernet 5 Port Switch DIN Rail Mountable, Quick Start Guide

Environmentally Friendly: Yes
Environmental Certification: RoHS, WEEE
Country of Origin: United Kingdom
TAA Compliant: Yes
