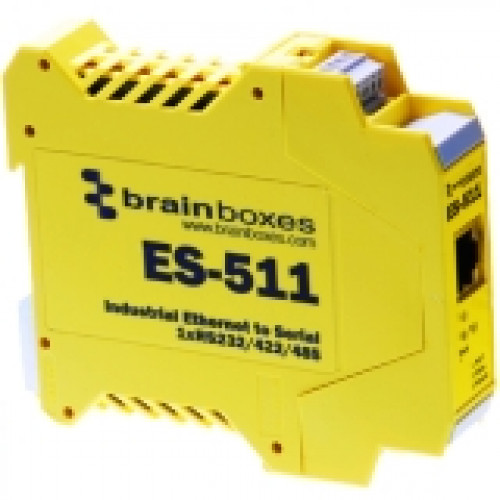

Brainboxes Industrial Ethernet to Serial 1xRS232/422/485 - DIN Rail Mountable - PC, Linux - 1 x Number of Serial Ports External - TAA Compliant ES-511

Brainboxes Industrial Ethernet to Serial 1xRS232/422/485 - DIN Rail Mountable - PC, Linux - 1 x Number of Serial Ports External - TAA Compliant ES-511
Brand: Brainboxes
Part Number: ES-511
MSRP: $355.99
Availability: 10 or more
Condition: New
Price: $296.14
Qty:     - OR -   Add to Wish List
Add to Compare
Brainboxes Industrial Ethernet to Serial 1xRS232/422/485 - DIN Rail Mountable - PC, Linux - 1 x Number of Serial Ports External - TAA Compliant

Ethernet to Serial Device with 1 Port software selectable as RS232, RS422/485 Full duplex or RS422 Half duplex. ES-511 has removable Screw Terminals Blocks for easy wiring, a slim ''end on'' case and integral DIN rail mount. Our Industrial Ethernet to Serial has an operating temperature range of -30 to +80 degrees Celsius and with +5VDC to +30VDC Dual input reverse polarity protected power supply making it perfect for industrial applications. Data transfer rates up to 1,000,000 baud (1 MegaBaud), coupled with 1Mbit/s line drivers deliver uncompromising performance. Baud rates can be standard values such as 9,600, 115,200, 230,000, 921,600 or user definable non standard values. Our Industrial ES range provides simple instant networked serial ports in demanding environments. Serial Port Tunnelling (peer to peer) allows serial cable replacement over any distance, no software required. Suitable to be wired into existing power and network infrastructure or can be used with our PW-600 power supply. More from the Manufacturer


Technical Specifications:
Platform Supported: PC, Linux
Number of Serial Ports (External): 1
Form Factor: DIN Rail Mountable
Height: 0.9"
Width: 4.1"
Depth: 4.5"
Weight (Approximate): 3.63 oz
Package Contents:
    Industrial Ethernet to Serial 1xRS232/422/485, Installation CD Including Manual, Microsoft Signed Drivers & Utilities, Quick Start Guide

Environmentally Friendly: Yes
Environmental Certification: WEEE, RoHS
Country of Origin: United Kingdom
TAA Compliant: Yes
