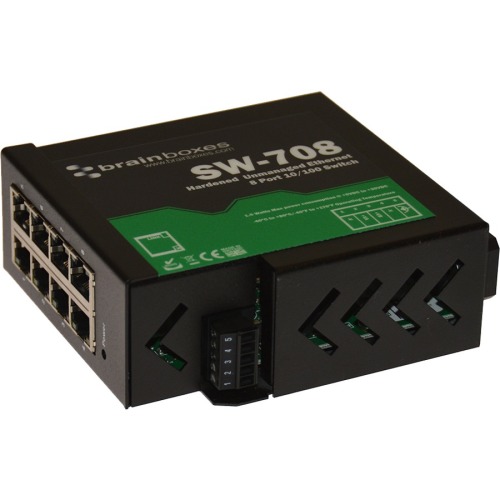

Brainboxes Hardened Industrial Ethernet 8 Port Switch DIN Rail Mountable - 8 Ports - TAA Compliant - 2 Layer Supported - Twisted Pair - DIN Rail Mountable - Lifetime Limited Warranty SW-708

Brainboxes Hardened Industrial Ethernet 8 Port Switch DIN Rail Mountable - 8 Ports - TAA Compliant - 2 Layer Supported - Twisted Pair - DIN Rail Mountable - Lifetime Limited Warranty

Industrial Ethernet 8 Port unmanaged switch. Galvanically Isolated Ports. Industrial temperature range of -40°C to +80°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications. More from the Manufacturer

Technical Specifications:
Total Number of Network Ports: 8
Modular: No
Port/Expansion Slot Details: 8 x Fast Ethernet Network
Media Type Supported: Twisted Pair
Ethernet Technology: Fast Ethernet
Network Technology: 10/100Base-T
Layer Supported: 2
Manageable: No
Power Source: AC Adapter, USB
Redundant Power Supply Supported: No
Form Factor: DIN Rail Mountable
Height: 1.8"
Width: 4.9"
Depth: 4.3"
Weight (Approximate): 15.20 oz
Package Contents:

Hardened Industrial Ethernet 8 Port Switch DIN Rail Mountable, Quick Start Guide

Environmentally Friendly: Yes
Environmental Certification: RoHS, WEEE
Country of Origin: United Kingdom
TAA Compliant: Yes
