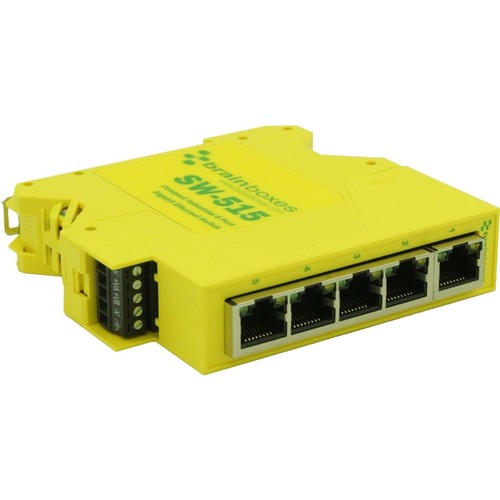

Brainboxes Compact Industrial 5 Port Gigabit Ethernet Switch DIN Rail Mountable - 5 Ports - TAA Compliant - 2 Layer Supported - Twisted Pair - DIN Rail Mountable - Lifetime Limited Warranty SW-515

Brainboxes Compact Industrial 5 Port Gigabit Ethernet Switch DIN Rail Mountable - 5 Ports - TAA Compliant - 2 Layer Supported - Twisted Pair - DIN Rail Mountable - Lifetime Limited Warranty SW-515
Brand: Brainboxes
Part Number: SW-515
MSRP: $129.99
Availability: 10 or more
Condition: New
Price: $108.20
Qty:     - OR -   Add to Wish List
Add to Compare
Brainboxes Compact Industrial 5 Port Gigabit Ethernet Switch DIN Rail Mountable - 5 Ports - TAA Compliant - 2 Layer Supported - Twisted Pair - DIN Rail Mountable - Lifetime Limited Warranty

Compact industrial 5 port Gigabit Ethernet unmanaged switch. Galvanically Isolated Ethernet Ports. Automatic detection of data transmission speed: 10/100/1000 Mbps. Industrial temperature range of -40°C to +80°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Only 23mm wide and 94mm deep. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications.


Technical Specifications:
Total Number of Network Ports: 5
Uplink Port: No
Modular: No
Stack Port: No
Port/Expansion Slot Details: 5 x Gigabit Ethernet Network
Media Type Supported: Twisted Pair
Ethernet Technology: Gigabit Ethernet
Network Technology: 10/100/1000Base-T
Layer Supported: 2
Manageable: No
Form Factor: DIN Rail Mountable
Height: 3.9"
Width: 0.9"
Depth: 3.7"
Weight (Approximate): 3.95 oz
Package Contents:
    Compact Industrial 5 Port Gigabit Ethernet Switch DIN Rail Mountable, Quick Start Guide

Environmentally Friendly: Yes
Environmental Certification: RoHS, WEEE
Country of Origin: United Kingdom
TAA Compliant: Yes
