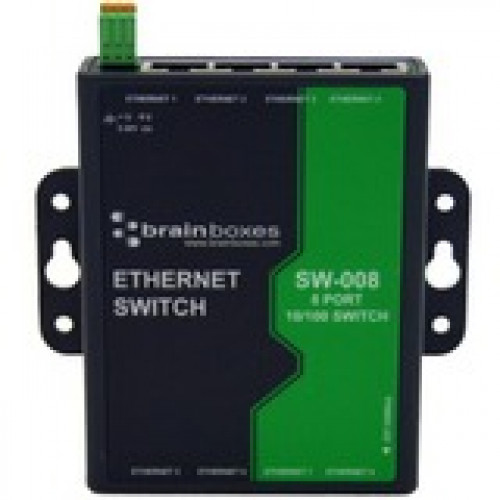

Brainboxes 8 Port Unmanaged Ethernet Switch Wall Mountable - 8 Ports - TAA Compliant - 2 Layer Supported - Twisted Pair - DIN Rail Mountable, Wall Mountable - Lifetime Limited Warranty SW-008

Brainboxes 8 Port Unmanaged Ethernet Switch Wall Mountable - 8 Ports - TAA Compliant - 2 Layer Supported - Twisted Pair - DIN Rail Mountable, Wall Mountable - Lifetime Limited Warranty

Light Industrial/Commercial Ethernet 8 Port unmanaged switch. Galvanically Isolated Ports. Power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications. Wall mountable using mounting screw holes, optional DIN Rail mount accessory available (see MK-048).

Technical Specifications:
Total Number of Network Ports: 8
Port/Expansion Slot Details: 8 x Fast Ethernet Network
Media Type Supported: Twisted Pair
Ethernet Technology: Fast Ethernet
Network Technology: 10/100Base-T
Layer Supported: 2
Manageable: No
PoE (RJ-45) Port: No
Power Source: Power Supply
Power Consumption: 1.10 W
Form Factor: DIN Rail Mountable, Wall Mountable
Height: 1.2"
Width: 4.3"
Depth: 3.9"
Weight (Approximate): 5.01 oz
Package Contents:

8 Port Unmanaged Ethernet Switch Wall Mountable, Quick Start Guide

Environmentally Friendly: Yes
Environmental Certification: RoHS, WEEE
Country of Origin: United Kingdom
TAA Compliant: Yes
