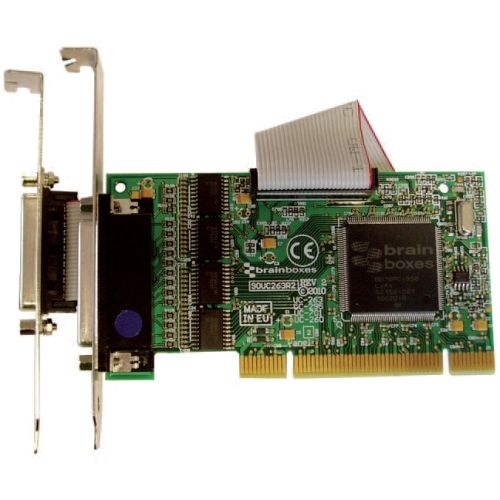

Brainboxes 4xRS232 Low Profile PCI Serial Port Card with LPT Parallel Port for Printer - Low-profile Plug-in Card - PCI 3.0 - PC - TAA Compliant - RoHS, WEEE Compliance UC-263

Brainboxes 4xRS232 Low Profile PCI Serial Port Card with LPT Parallel Port for Printer - Low-profile Plug-in Card - PCI 3.0 - PC - TAA Compliant - RoHS, WEEE Compliance

Universal PCI providing four RS232 serial ports and one LPT port (4 industry standard 9 pin D RS232 ports with 25 pin D LPT port on a flylead). Data transfer rates up to 115,200 baud rates and the 64 byte deep transmit and 64 byte receive FIFOS, coupled with 1Mbit/s line drivers deliver uncompromising performance on your PC.Includes drivers for all Windows 32 bit and 64 bit Operating Systems, including Windows 8.

Technical Specifications:
Host Interface: PCI 3.0
Data Transfer Rate: Up to 115.2kB/s
UART Type: 16C958, 16750, 16550, 16450
Platform Supported: PC
Form Factor: Plug-in Card
Card Height: Low-profile
Height: 3.1"
Width: 5.3"
Depth: 0.7"
Thickness: 710 mil
Weight (Approximate): 2.43 oz
Package Contents:

4xRS232 Low Profile PCI Serial Port Card with LPT Parallel Port for Printer, Installation CD Including Manual, Microsoft Signed Drivers & Utilities

Environmentally Friendly: Yes
Environmental Certification: RoHS, WEEE
Country of Origin: United Kingdom
TAA Compliant: Yes
