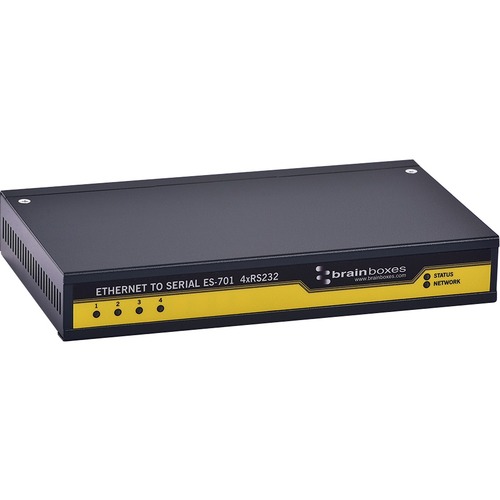

Brainboxes 4 Port RS232 Ethernet to Serial Adapter - Wall-mountable, DIN Rail Mountable - TAA Compliant - RoHS, WEEE Compliance ES-701

Brainboxes 4 Port RS232 Ethernet to Serial Adapter - Wall-mountable, DIN Rail Mountable - TAA Compliant - RoHS, WEEE Compliance

Ethernet to Serial device server providing access to four RS232 serial port. Data transfer rates up to 1,000,000 baud rates (1 MegaBaud), coupled with 1Mbit/s line drivers deliver uncompromising performance. Baud rates can be standard values such as 9,600, 115,200, 230,000, 921,600 or user definable non standard values. Our ES range provides simple instant networked serial ports. A web interface allows secure configuration and control of the serial ports over a local network or the internet using any browser. For Windows our in-house designed (32 bit and 64 bit) driver gives you local COM ports, retaining existing software applications and allowing you to connect across your network to remote devices just as if they were attached locally. Serial Port Tunnelling (individually configurable) allows serial cable replacement over any distance, no software required. You can access the device via TCP/IP sockets from any networked device like an Android tablet, PC or phone. On Windows OS TCP/IP sockets are handled by the Winsock API, this will differ on other OSs.

Technical Specifications:
Platform Supported: PC
Number of Serial Ports: 4
Form Factor: Wall-mountable, DIN Rail Mountable
Height: 1.3"
Width: 8.5"
Thickness: 5.2"
Weight (Approximate): 1.49 lb
Country of Origin: United Kingdom
TAA Compliant: Yes
