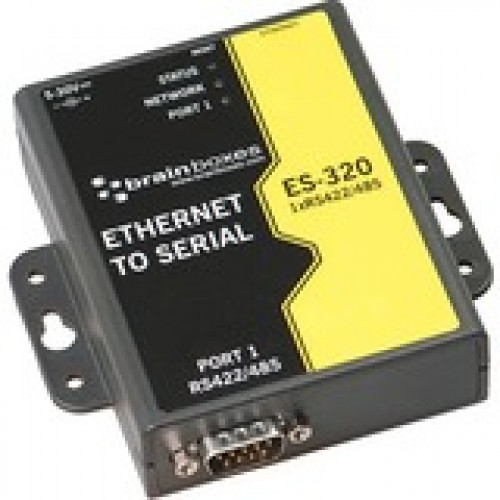

Brainboxes 1 Port RS422/485 Ethernet to Serial Adapter - Twisted Pair - 1 x Network (RJ-45) - 1 x Serial Port - 10/100Base-TX - Fast Ethernet - Rail-mountable - TAA Compliant ES-320

Brainboxes 1 Port RS422/485 Ethernet to Serial Adapter - Twisted Pair - 1 x Network (RJ-45) - 1 x Serial Port - 10/100Base-TX - Fast Ethernet - Rail-mountable - TAA Compliant ES-320
Brand: Brainboxes
Part Number: ES-320
MSRP: $150.99
Availability: 10 or more
Condition: New
Price: $125.58
Qty:     - OR -   Add to Wish List
Add to Compare
Brainboxes 1 Port RS422/485 Ethernet to Serial Adapter - Twisted Pair - 1 x Network (RJ-45) - 1 x Serial Port - 10/100Base-TX - Fast Ethernet - Rail-mountable - TAA Compliant

Ethernet to Serial device server providing access to one RS422/485 serial port. Data transfer rates up to 1,000,000 baud, coupled with 1Mbit/s line drivers deliver uncompromising performance. Our ES range provides simple instant networked serial ports. RS485 - 1 twisted pair - half duplex configuration with autogating provides trouble free data transmission due to automatic control of data direction. A web interface allows secure configuration and control of the serial ports over a local network or the internet using any browser. For Windows our in-house designed (32 bit and 64 bit) driver gives you local COM ports, retaining existing software applications and allowing you to connect across your network to remote devices just as if they were attached locally. Serial Port Tunnelling (individually configurable) allows serial cable replacement over any distance, no software required. You can access the device via TCP/IP sockets from any networked device like an Android tablet, PC or phone. On Windows OS TCP/IP sockets are handled by the Winsock API, this will differ on other OSs.


Technical Specifications:
Platform Supported: PC
Number of Serial Ports (External): 1
Form Factor: DIN Rail Mountable
Height: 1.1"
Width: 4.1"
Depth: 4.2"
Weight (Approximate): 4.27 oz
Country of Origin: United Kingdom
TAA Compliant: Yes
