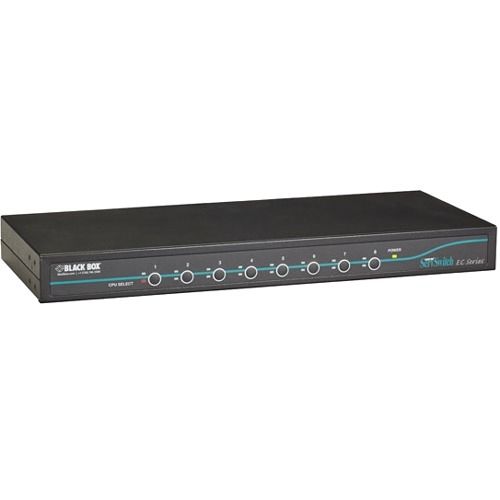

Black Box ServSwitch EC for DVI + USB Servers and DVI + USB Console, 8-Port - 8 Computer(s) - 1 Local User(s) - 1920 x 1200 - 10 x USB - 9 x DVI - Rack-mountable - 1U KV9508A

Black Box ServSwitch EC for DVI + USB Servers and DVI + USB Console, 8-Port - 8 Computer(s) - 1 Local User(s) - 1920 x 1200 - 10 x USB - 9 x DVI - Rack-mountable - 1U

Quick FactsManage up to eight servers with this simple plug-and-play KVM switch.Resolutions up to 1920 x 1200.Perfect for small server rooms.8-port DVI (single link) and USB KVM switch with USB/DVI console.Further DetailsChoose the console mode by sliding a switch on the back panel.Save rack space-only 1U high!Supports Microsoft® IntelliMouse® (Pro).Operating system independent and transparent to all applications.Switch manually or use autoscan, which selects servers sequentially.Save and store keyboard settings while switching.Hot-pluggable keyboard/mouse ports.Plug-and-play configuration.DDC2B compatible.Tight quarters. Ideal for applications where you have a limited amount of space, the 1U-high 8-port DVI switch can be used on the desktop or mounted in a rack or cabinet.Very switchable. Switch between servers using front-panel buttons or hotkeys. Or you select the Autoscan function for automatic switching, the ServSwitch EC will scan and switch between servers, one by one, at an interval that you determine. When Autoscan detects any keyboard or mouse activity, it suspends the scanning until activity stops and then resumes with the next computer in sequence.Set it and forget it. System settings are stored in nonvolatile memory so you don''t have to worry about a power outage wiping out your information. The ServSwitch EC also saves your keyboard settings for each server and restores them when you come back to that machine.

Technical Specifications:
Number of Computers Supported: 8
Number of Local Users Supported: 1
Minimum Scan Interval: 3 Second
Maximum Operating Distance: 15 ft
Graphic Mode: WUXGA
Maximum Video Resolution: 1920 x 1200
USB: Yes
DVI: Yes
Number of USB Ports: 10
Number of DVI Ports: 9
Input Voltage: 120 V AC, 230 V AC, 9 V DC
Form Factor: Rack-mountable
Rack Height: 1U
Height: 1.8"
Width: 17.3"
Depth: 7"
Weight (Approximate): 5 lb
Package Contents: ServSwitch EC for DVI + USB Servers and DVI + USB Console, 8-Port, 1 x AC Power Adapter, 1 x 6-ft. Power Cable, Set of (4) Foot Pads, 2 X Mounting Brackets, Assortment Of Screws, User's Manual
Platform Supported: Mac, PC
Environmentally Friendly: Yes
Environmental Certification: WEEE, RoHS
Country of Origin: Taiwan
